Sockets on these pages are listed in ascending order by the number of pins.


2 Pins 3 Pins 4 Pins 5 Pins 6 Pins 8 Pins 10 Pins 12 Pins 14 Pins 16 Pins 20 Pins
24 Pins 26 Pins 28 Pins 30 Pins 32 Pins 36 Pins 38 Pins 40 Pins 44 Pins 48 Pins 52 Pins
54 Pins 56 Pins 60 Pins 64 Pins 66 Pins 68 Pins 70 Pins 72 Pins 80 Pins 84 Pins 100 Pins
112 Pins 120 Pins 128 Pins 132 Pins 144 Pins 160 Pins 176 Pins 208 Pins 240 Pins 256 Pins 304 Pins

Enplas Sockets  Loranger Sockets
MiS Technologies Sockets  Plastronics Sockets
Sensata Wells-CTI Sockets  Yamaichi Sockets
Socket Receptacles BGA Sockets

Part Number Click Enlarge 2 Pin SMT Capacitor & Resistor Sockets Price Shopping Cart
CAP-002-01-00   MIS Technologies Corp.0603 type  SMT passive Component test socket 2 Pin, Closed top passive SMT component socket for 0603 imperial, 0201 metric 0.80mm thick package.
  • Closed top Clamshell Type Socket
  • Capacitor length 1.6 +/-0.15mm
  • Capacitor width 0.8 +/-0.15mm
  • Capacitor height 0.8 +/-0.07mm
  • 2 Pogo pin -Spring probe contacts
  • Socket through-hole pin mount
  • Socket outline 16.0 x 7.0mm
  • Mfr. MIS Technologies
  • Status - In Stock
  • Banana Jack Adapter CAP-002-01-BJ
  • Drawing request
$34.00
CAP-002-02-00   MIS Technologies Corp. 0803 type SMT passive component test socket 2 Pin, Closed top SMT passive component socket for 2 Pin, Closed top passive SMT component socket for 0805 imperial, 2012 metric, 1.45mm thick package.
  • Closed top Clamshell Type Socket
  • Capacitor length 2.0 +/-0.2mm
  • Capacitor width 1.25 +/-0.2mm
  • Capacitor height 1.45 +/-0.02mm
  • 2 Pogo pin -Spring probe contacts
  • Socket through-hole pin mount
  • Socket outline 16.0 x 7.0mm
  • Mfr. MIS Technologies
  • Status - In Stock
  • Banana Jack Adapter CAP-002-02-BJ
  • Drawing request
$36.00
CAP-002-03-00   MIS Technologies Corp. 0805 type  SMT passive component test socket 2 Pin, Closed top passive component SMT socket for 0805 imperial, 2012 metric, 0.90mm thick package.
  • Closed top Clamshell Type Socket
  • Component length 2.0 +/-0.1mm
  • Component width 1.25 +/-0.1mm
  • Component height 0.90 +/-0.01mm
  • 4 Pogo Pin (2 on each end) - spring probe Contacts
  • Socket through-hole pin mount
  • Socket outline 16.0 x 7.0mm
  • Mfr. MIS Technologies
  • Status - In Stock
  • Banana Jack Adapter CAP-002-03-BJ
  • Drawing request
$36.00
CAP-002-04-00   MIS Technologies Corp.0402 type SMT capacitor test socket 2 Pin, Closed top SMT component socket for 0402 imperial, 1005 metric 0.51mm thick package.
  • Closed top Clamshell Type Socket
  • Capacitor length 1.0+/-0.10mm
  • Package Width 0.5+/-0.10mm
  • Capacitor height 0.51+/-0.10mm
  • 2 Pogo pin -Spring probe contacts
  • Socket through-hole pin mount
  • Socket outline 16.0 x 7.0mm
  • Mfr. MIS Technologies
  • Status - In Stock
  • Banana Jack Adapter CAP-002-04-BJ
  • Drawing request
$42.00

Part Number Click Enlarge 3 Pin Sockets Price Shopping Cart
499-P36-20 Sensata 499-P36-20 Closed top  SOT23-3 test socket. 3 Pin Closed top test socket, SOT23-3 JEDEC Spec TO-236 test socket
  • Closed top test socket
  • SOT23-3, for JEDEC Spec TO-236 Type
  • 3 Pins
  • 1.40mm (0.055") Max package width
  • 3.04mm (0.120") Max package length
  • 1.9mm (0.75") Pitch on one side. Single center contact on the other side.
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$20.00
499-040-20 Sensata 499-040-20 Closed top JDEC TO-263 test socket. 3 Pin D Square Pac JDEC TO-263Closed top test socket
  • Closed top test socket
  • For JDEC TO-263 Components
  • 3 Pins
  • 10.29mm (0.405") Max package width
  • 9.65mm (0.380") Max package length
  • 12.54mm (0.10") Pitch on one side. Single center contact on the other side.
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$23.00
611-1032314 Sensata 611-1032314 JDEC TO-5 test socket. 3 Pin JDEC TO-5 pin circle ZIF test socket
  • ZIF test socket
  • For 3 pin JDEC TO-5 Package components
  • Component pin alignment guides
  • Through hole pins with center PCB locating stud.
  • 5.08mm (200 mils) Between the 2 opposite pins
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$7.00

Part Number Click Enlarge 4 Pin Sockets Price Shopping Cart
499-P37-20 Sensata 499-P43-2 SOT23-5, for MO178 Package Type test socket 4 Pin Closed top test socket, SOT89 package test socket
  • Closed top test socket
  • SOT89 JEDEC TO-243 Package Type
  • 4 Pins
  • 2.64mm (0.104") Max package width
  • 4.57mm (0.180") Max package length
  • 1.73mm (0.068") Tab Single contact centered on one side.
  • 3.0mm (0.118") Pitch on the other side.
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$18.00
499-P38-20 Sensata 499-P38-20 for SOT223, TO-261 Package Type test socket 4 Pin Closed top test socket, SOT89 package test socket
  • Closed top test socket
  • SOT223-1 JEDEC TO-261 Package Type
  • 4 Pins
  • 3.7mm (0.146") Max package width
  • 6.7mm (0.264") Max package length
  • 3.1mm (0.122") Tab Single contact centered on one side.
  • 2.3mm (0.091") Pitch on the other side.
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$23.00

Part Number Click Enlarge 5 Pin Sockets Price Shopping Cart
SMT-26420-A107664001   5 Pin Closed top test socket, for SC-70, SOC-353 IC package
  • Closed top test socket
  • SC-70, SOC-353 Package Type
  • 5 Pins
  • 1.25mm (49.2 mils) Max package width
  • 2.00mm (78.7 mils) Max package length
  • 0.9mm (35.4 mils) Package height
  • 0.065mm (25.6 mils) Pitch
  • Mfr. Yamaichi
  • Status - Sold out More due May 30, 2018
  • Drawing request
$55.00
499-P43-20 Sensata 499-P43-2 SOT23-5, for MO178 Package Type test socket 5 Pin Closed top test socket, SOT23-5 MO178 package test socket
  • Closed top test socket
  • SOT23-5, for MO178 Package Type
  • 5 Pins
  • 1.65mm (0.065") Max package width
  • 2.95mm (0.116") Max package length
  • 0.037mm (0.95") Pitch on one side. Single center contact on the other side.
  • 1.016mm (0.04") Access slot
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$23.00
04335-121-6218D   Loranger 04335-121-6218D, SC70, MO-203 Small Outline Transistor Package test socket 5 Pin Closed top Kelvin connection socket for SC70 MO-203 Small Outline Transistor package. $40.00

Part Number Click Enlarge 6 Pin Sockets Price Shopping Cart
499-P44-20 Sensata 499-P44-20 SOT23-6 for MO178 Package Type test socket 6 Pin Sensata Closed top test socket, SOT23-6 MO178 package test socket
  • Closed top test socket
  • SOT23-6 for MO178 Package Type
  • 6 Pins
  • 1.65mm (0.065") Max package width
  • 2.95mm (0.116") Max package length
  • 0.037mm (0.95") Pitch
  • 1.016mm (0.04") Access slot
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$18.00

Part Number Click Enlarge 8 Pin Sockets Price Shopping Cart
04165-081-6217 Loranger 04165-081-6217 clamshell, closed top, 8 pin SOIC test socket. 8 Pin Clamshell, closed top, 8 pin, SOIC Kelvin connection test socket
  • 8 Pin SOIC Closed top test socket
  • Compatible IC drawing
  • Kelvin Connection pins
  • 3.0 x 3.0mm Square SOIC Body
  • 0.65mm (25.6 mil) pitch
  • Mfr. Loranger
  • Status - IN STOCK
  • Drawing request
$90.00
08QHC12Y16050   Plastronics 08QHC12Y16050 Closed top  5 x 6mm QFN test socket. 8 Pin H Pin Clamshell QFN type package test socket
  • Clamshell socket
  • H Pin QFN Package Type
  • 8 Pins, 4 each on the two longest sides
  • 5.0mm (0.197 inches) Chip body width
  • 6.0mm (0.236 inches) Chip body length
  • 4 Additional IC center pad contacts
  • 1.27mm (50 mil) pitch
  • Mfr. Plastronics
  • Status IN STOCK
  • Drawing request
$219.00
08QN50L22020S   Plastronics 08QN65S23030 Closed top 3.0 x 3.0mm (0.1181 inches) QFN test socket. 8 Pin Clamshell, Square QFN package test socket
  • Clamshell socket
  • Compatible QFN Package Type
  • 8 Pins, 4 each on the two sides
  • 2.0 x 2.0mm (0.0787 inches inches) Square chip body
  • Additional IC center pad contact
  • 0.5mm (20 mil) pitch
  • Mfr. Plastronics
  • Status IN STOCK
  • Drawing request
$32.00
08QN65S23030   Plastronics 08QN65S23030 Closed top 3.0 x 3.0mm (0.1181 inches) QFN test socket. 8 Pin Clamshell, Square QFN package test socket
  • Clamshell socket
  • Compatible QFN Package Type
  • 8 Pins, 4 each on two sides
  • 3.0 x 3.0mm (0.1181 inches) Square chip body
  • Additional IC center pad contact
  • 0.65mm (25.6 mil) pitch
  • Mfr. Plastronics
  • Status IN STOCK
  • Drawing request
$58.00
08TN80K14040   Plastronics 08TN80K14040 Closed top  4 x 4mm QFN test socket. 8 Pin Clamshell QFN type package test socket
  • Clamshell socket
  • QFN Package Type
  • 8 Pins plus center contact
  • 4.0 X 4.0mm Chip body width
  • 0.8mm pitch
  • Mfr. Plastronics
  • Status IN STOCK
  • Drawing request
$60.00
08QN12T16050 Plastronics 08QN12T16050 Closed top  6.10 X 5.10mm QFN test socket. 8 Pin Clamshell QFN type package test socket
  • Clamshell socket
  • QFN Package Type
  • 8 Pins
  • 6.0 X 5.0mm Chip body width
  • 1.27mm (50 mil) pitch
  • Mfr. Plastronics
  • Status IN STOCK
  • Drawing request
  • Adapters
$95.00
03717-091-8218B Loranger 03717-091-8218B clamshell, closed top, 8 pin DFN test socket. 8 Pin Clamshell, closed top, 8 pin DFN test socket
  • Closed top test socket
  • DFN Square Package
  • 4 Pins on opposite sides
  • 0.65mm (25.6 mil) pitch
  • 3.0 x 3.0mm Square Body width
  • Mfr. Loranger
  • Status - IN STOCK
  • Drawing request
$30.00
611-1082314 Sensata 611-1082314, 4 or 8 pin round open top, TO-5 8 pin test socket. 8 Pin Open top, 4 or 8 pin circle, TO-5 ZIF test socket
  • Open top test socket
  • For TO-5 Round Package
  • 4 or 8 Pins
  • 5.08mm (200 mils) Device pin circle
  • 13.46mm (530 mils) Mounted socket height
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$11.50
652B0082211 Sensata 652B0082211 open top, 8 pin SOP test socket. 8 Pin Open top, SOP wide type package test socket $8.00
652B0082211-002 Sensata 652B0082211-002 open top, 8 pin SOP test socket. 8 Pin Open top, SOP narrow type package test socket $8.00
652C0082211W Sensata 652C0082211W open top, 8 pin SOP test socket. 8 Pin Open top, SOP type package, dual pin contact test socket $11.00
652C0082211W003 Sensata 652B0082211W003 open top, 8 pin SOP test socket. 8 Pin Open top, SOP type package, dual pin contact test socket $11.00
656-1082211 Sensata 656-1082211 open top, 8 pin SSOP test socket. 8 Pin Open top, SSOP type package, dual pin contact test socket
  • Open top test socket
  • Compatible SSOP IC Package Drawing
  • 8 Pins
  • 3.0mm (118 mils) Chip body width
  • 4.9mm (193 mils) Leads Tip to tip
  • 3.0mm (118 mils) Chip body length
  • 0.65mm (25.6 mils) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapers
$11.00
790-42008-101T Sensata 790-42008-101T open top test socket for QFN package. Four pins on two sides. 8 Pin Open top, thermal pin test socket, QFN package size. Four pins on two sides only test socket
  • Compatible IC drawing
  • 8 Pins - 4 pins on two sides, two sides blank
  • Thermal connection pins
  • 0.5mm (20 mil) Pitch device
  • 3.0mm X 3.0mm square package
  • Mfr. Sensata
  • Status - IN STOCK
  • Drawing request
$50.00

Part Number Click Enlarge 10 Pin Sockets Price Shopping Cart
611-1102314 Sensata 611-1102314 JDEC TO-5 test socket. 10 Pin JDEC TO-5pin circle ZIF test socket
  • ZIF test socket
  • For 10 pin JDEC TO-5 Package components
  • Component pin alignment guides
  • Through hole pins with center PCB locating stud.
  • 5.08mm (200 mils) Device pin circle
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$13.30
656-0102211 Sensata 656-0102211 open top, 10 pin SSOP test socket. 10 Pin Open top test socket, SSOP package test socket
  • Open top test socket
  • SSOP Package Type
  • Compatible SSOP IC Package Drawing
  • 10 Pins
  • 4.88 (0.192") Leads Tip to tip
  • 2.97mm (0.117") Chip body length
  • 3.0mm (0.118") Chip body width
  • 0.5mm (0.020") Pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters656-0102211ol
$11.00
790-41010-101-T Sensata 10 pin open top test socket, MLF package test socket. 10 Pin Open top test socket, QFN package test socket
  • Open top test socket
  • QFN Package Type
  • Compatible QFN IC Package Drawing
  • 10 Pins
  • Thermal pin connection
  • 3.0mm (0.118") Chip square body width
  • 0.5mm (0.020") Pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$38.00
10QN50S13030 Plastronics 10QN50S13030 closed top, 10 pin, 3.0mm X 3.0mm QFN test socket. 10 Pin Closed top test socket, QFN package test socket $95.00

Part Number Click Enlarge 12 Pin Sockets Price Shopping Cart
12QN40S13030 Plastronics 12QN40S13030 - 12 pin Closed top QFN package test socket. 12 Pin Closed top QFN package test socket $140.00
08QHC12Y16050 Plastronics 12 pin 08QHC12Y16050 Closed top LGA package test socket. 12 Pin Closed top LGA package test socket $219.00

Part Number Click Enlarge 14 Pin Sockets Price Shopping Cart
652B0142211 Sensata 652B0142211 open top, 14 pin SOP test socket. 14 Pin Open top, SOP type package test socket
  • Open top test socket
  • Compatible SOP IC Package Drawing
  • SOP Package Type6
  • 14 Pins
  • 4.40mm (173 mils) Chip body width
  • 6.40mm (252 mils) Leads Tip to tip
  • 10.48 (413 mils) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$10.00
652B0142211-001 Sensata 6652B0142211-001 open top, 14 pin SOP test socket. 14 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • Compatible SOP IC Package Drawing
  • SOP Package Type6
  • 14 Pins
  • 5.00mm (197 mils) Chip body width
  • 6.80mm (268 mils) Leads Tip to tip
  • 10.48 (413 mils) Tip Body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$10.00
652B0142211-002 Sensata 652B0142211-002 open top, 14 pin SOP test socket. 14 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • Compatible SOP IC Package Drawing
  • 14 Pins
  • 3.90mm (154 mils) Chip body width
  • 6.0mm (236 mils) Leads Tip to tip
  • 10.48 (413 mils) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$10.00
676-3140111 Sensata 676-3140111 open top, 14 pin TSSOP test socket. 14 Pin Open top, TSSOP type package test socket
  • Open top test socket
  • TSSOP Package Type
  • Compatible SOP IC Package Drawing
  • 14 Pins
  • 4.39mm (173 mils) Chip body width
  • 6.4mm (252 mils) Leads Tip to tip
  • 5.15mm (203 mils) Body length
  • 0.65mm (25.6 mils) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - Sold out More due 7/14/18
  • Drawing request
  • Adapters
$25.00

Part Number Click Enlarge 16 Pin Sockets Price Shopping Cart
FP-16-1.27-05 Enplas FP-16-1.27-05 closed top, 16 pin SOIC test socket. 16 Pin Closed top test socket, SOIC package test socket
  • Closed top test socket
  • SOIC Package Type
  • 16 Pins
  • 1.27 (50 mil) Pitch device
  • 338 mils (8.58mm) Leads Tip to tip
  • 153 mils (3.9mm) Chip body width
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
  • Adapters
$42.00
IC189-0162-019 Yamaichi IC189-0162-019 - 16 pin open top SOIC package test socket. 16 Pin Open top, SOP, TSOP type I & II package test socket
  • Open top test socket
  • SOIC Package Type
  • 16 Pins
  • 1.27mm (50 mil) Pitch device
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$21.00
IC151-0162-271-3 Yamaichi IC151-0162-271-3 - 16 pin Closed top, SOP package test socket. 16 Pin Closed top, SOP package test socket
  • Closed top test socket
  • SOP Package Type
  • 16 Pins
  • 1.27mm (50 mil) Pitch device
  • 4.4mm (173 mils) Chip body width
  • 6.0mm (236 mils) Leads Tip to tip
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$33.00
OTS-16-1.27-03   Enplas OTS-16-1.27-03 open top, 16 pin TSOP test socket. 16 Pin Open top, TSOP type package test socket $14.00
OTS-16-1.27-04   Enplas OTS-16-1.27-01 open top, 16 pin TSOP test socket. 16 Pin Open top, TSOP type package test socket
  • Open top test socket
  • TSOP Package Type
  • Compatible TSOP IC Package Drawing
  • 16 Pins
  • 7.5mm (295 mils) Chip body width
  • 10.4mm (409 mils) Leads Tip to tip
  • 10.82mm (426 mils) Max Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Enplas
  • Status - Sold Out More due April 15, 2018
  • Drawing request
  • Adapters
$14.00
OTS-16(28)-0.65-01   Enplas OTS-16(28)-0.65-01 closed top, 16 pin TSOP test socket. 16 Pin Open top, TSOP type package test socket
  • Open top test socket
  • TSOP Package Type
  • Compatible TSOP IC Package Drawing
  • 16 Pins
  • 4.4mm (173 mils) Chip body width
  • 6.4mm (252 mils) Leads Tip to tip
  • 5.0mm (197 mils) Chip body length
  • 0.65mm (25.6 mil) pitch
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
$24.00
16QN65S14040 Plastronics 16QN65S14040 Closed top 16 pin 4.0 X 4.0mm QFN test socket. 16 Pin Closed top test socket, QFN package test socket $95.00
16QN10S16060-A Plastronics 16QN10S16060-A Closed top 16 pin 6.0 X 6.0mm QFN test socket. 16 Pin Closed top test socket, QFN package test socket
  • Closed top test socket
  • QFN MLF Package Type
  • 16 Pins
  • Center pad spring probe
  • 1.0mm (39.4 mil)Pitch device
  • 6.0mm (236 mil) Square Chip body width
  • Mfr. Plastronics
  • Status - IN STOCK
  • Drawing request
$98.00
652-0162211-001 Sensata 652-0162211-001 open top, 16 pin SOP test socket. 16 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • 16 Pins
  • 7.6mm (299 mils) Chip body width
  • No IC alignment rails inside the socket. Fits odd sized or extra wide IC plastic body.
  • 10.2mm (402 mils) Leads Tip to tip
  • 10.5mm (413 mils) Chip body length
  • 1.27mm (50 mils) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapters
$12.00
652B0162211 Sensata 652B0162211-001 open top, 16 pin SOP test socket. 16 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • 16 Pins
  • 4.4mm (173 mils) Chip body width
  • 6.4mm (252 mils) Leads Tip to tip
  • 10.48mm (413 mils) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$12.00
652B0162211-001 Sensata 652B0162211-001 open top, 16 pin SOP test socket. 16 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • 16 Pins
  • 5.0mm (197 mils) Chip body width
  • 6.8mm (268 mils) Leads Tip to tip
  • 10.48mm (413 mils) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$12.00
652B0162211E-002 Sensata 652B0162211E-002 open top, 16 pin SOP test socket. 16 Pin Open top, SOP type package test socket with extra contact retention force.
  • Open top test socket
  • SOP Package Type
  • 16 Pins
  • 3.9mm +/- 0.1 (154 mils) Chip body width
  • 6.0mm +/- 0.2 (236 mils) Leads Tip to tip
  • 10.48 (413 mils) Chip body length
  • 1.27mm (50 mil) pitch
  • Higher contact retention force
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$12.00
652D0162211E202 Sensata 652D0162211-202 open top, 16 pin SOP test socket. 16 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • Compatible SOP Package Type
  • 7.5mm (295 mil) Chip body width
  • 10. 3mm (406 mil) Leads Tip to tip
  • 10.45 (411 mil) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapers
$12.00
652D0162211-202 Sensata 652D0162211-202 open top, 16 pin SOP test socket. 16 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • Compatible SOP Package Type
  • 7.5mm (295 mil) Chip body width
  • 10.4mm (409 mil) Leads Tip to tip
  • 10.5 (413 mil) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - Sold Out More due in July 5, 2018
  • Drawing request
  • Adapers
$12.00
656C1162211 Sensata 656C1162211 open top, 16 pin SSOP test socket. 16 Pin Open top, SSOP type package test socket
  • Open top test socket
  • SSOP Package Type
  • 16 Pins
  • 5.3mm (209 mils) Chip body width
  • 7.8mm (307 mils) Leads Tip to tip
  • 6.2mm (244 mils) Chip body length
  • 0.65mm (25.6 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - In Stock
  • Drawing request
$10.00
676-3160111 Sensata 676-3160111 open top, 16 pin TSSOP test socket. 16 Pin Open top, TSSOP type package test socket
  • Open top test socket
  • TSSOP Package Type
  • 16 Pins
  • 4.39mm (0.173 inch) Chip body width
  • 6.25 to 6.56mm (0.246 to 0.258 inch) Leads Tip to tip
  • 5.0mm Body length
  • 0.65mm (25.6 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Adapers
$26.00
790-41016-101 Sensata 790-41016-101 - 16 Pin Open top QFN test socket 16 Pin Open top test socket, QFN package size. Three pins on two sides 5 pins on two sides
  • 16 Pins - 3 pins on two sides and 5 pins two sides
  • 0.5mm (20 mil) Pitch device
  • 3.0mm X 3.0mm square package
  • Mfr. Sensata
  • Status - IN STOCK
  • Drawing request
$88.00

Part Number Click Enlarge 20 Pin Sockets Price Shopping Cart
FP-20-0.65-01 Enplas FP-20-0.65-01 Closed top, 20 pin SOP test socket. 20 Pin Closed top test socket, SOP package test socket
  • Closed top test socket
  • SOIC Package Type
  • 20 Pins
  • 0.65mm (25.6 mil) Pitch device
  • 6.14mm (251 mil) Leads Tip to tip
  • 4.4mm (173 mil) Chip body width
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
$33.00
FP-20-1.27-03 Enplas FP-20-1.27-03 Closed top, 20 pin SOIC test socket. 20 Pin Closed top test socket, SOIC package test socket
  • Closed top test socket
  • SOIC Package Type
  • 20 Pins
  • 1.27mm (50 mil) Pitch device
  • 10.18mm (400 mil) Leads Tip to tip
  • 7.65mm (300 mil) Chip body width
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
$33.00
FP-20-1.27-06 Enplas FP-20-1.27-06 Closed top top, 20 pin SOIC test socket. 20 Pin Closed top test socket, SOIC package test socket
  • Closed top test socket
  • SOIC Package Type
  • 20 Pins
  • 1.27mm (50 mil) Pitch device
  • 7.63mm (307 mil) Leads Tip to tip
  • 5.35mm (211 mil) Chip body width
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
$33.00
IC120-0204-205 Yamaichi IC120-0204-205 open top, 20 pin PLCC test socket. 20 Pin Open top, PLCC package test socket
  • Auto-eject dead bug
  • Open top test socket
  • PLCC Package Type
  • 20 Pins
  • Foot print
  • 1.27mm (50 mil) Pitch device
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$18.00
IC51-0202-347 Yamaichi IC51-0202-347 closed top, 20 pin SOP test socket. 20 Pin Closed top, SOP package test socket
  • Closed top test socket
  • SOP Package Type
  • 20 Pins
  • 1.27mm (50 mil) Pitch device
  • 7.7mm (303 mils) Chip body width
  • 10.3mm (405 mils) Leads Tip to tip
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$35.00
20QN50S14040 Plastronics 20QN50S14040 closed top, 20 pin, 4.0mm X 4.0mm QFN test socket. 20 Pin Closed top test socket, QFN type package dual pin contact test socket. 4.0mm x 4.0mm Chip body width
  • Closed top test socket
  • QFN Package Type
  • 20 Pins
  • 4.0mm x 4.0mmChip body width
  • 0.50mm pitch
  • Mfr. Plastronics
  • Status - IN STOCK
  • Drawing request
  • Adapters
$59.00
20QN65TS15050-C Plastronics 20QN65TS15050-C closed top, 20 pin, 5.0mm X 5.0mm QFN test socket. 20 Pin Closed top test socket, QFN type package dual pin contact test socket. 5.0mm x 5.0mm Chip body width
  • Closed top test socket
  • QFN Package Type
  • 20 Pins
  • 5.0mm x 5.0mm Body width
  • 0.65mm ( 25.6 mil) pitch
  • Mfr. Plastronics
  • Status - IN STOCK
  • Drawing request
$110.00
652D0202211 Sensata 652D0202211 open top, 20 pin SOP test socket. 20 Pin Open top, SOP type package dual pin contact test socket
  • Open top test socket
  • SOP Package Type
  • 20 Pins
  • Chip body width 7.55mm (300 mil)
  • 10.4mm (412 mil) Leads Tip to tip
  • 13.11 (516 mil) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$24.00
652D0202211-001 Sensata 652D0202211 open top, 20 pin SOP test socket. 20 Pin Open top, SOP type package dual pin contact test socket
  • Open top test socket
  • SOP Package Type
  • 20 Pins
  • Chip body width 7.55mm (300 mil) This socket does not chip body alignment rails
  • 10.4mm (412 mil) Leads Tip to tip
  • 13.11 (516 mil) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$24.00
652D0202211-002 Sensata 652D0202211 open top, 20 pin SOP test socket. 20 Pin Open top, SOP type package dual pin contact test socket
  • Open top test socket
  • SOP Package Type
  • 20 Pins
  • Chip body width 7.50mm (300 mil) with alignment rails
  • 10.3mm (406 mil) Leads Tip to tip
  • 12.8mm (504 mil) Chip body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$24.00
652D0202212W001 Sensata 652D0202212W001 open top, 20 pin SOP test socket. 20 Pin Open top, Dual contact SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • 20 Pins
  • 7.55mm Chip body width This socket does not have chip body alignment rails
  • 10.4mm Leads Tip to tip
  • 13.11 Body length
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$16.00
656C1202211 Sensata 656C1202211 open top, 20 pin SSOP test socket. 20 Pin Open top, SSOP type package test socket
  • Open top test socket
  • SSOP Package Type
  • 20 Pins
  • 5.3mm Chip body width
  • 7.8mm Leads Tip to tip
  • 7.2mm Body length
  • 0.65mm (25.6 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$14.00
676-3200111 Sensata 676-3200111 open top, 20 pin TSSOP test socket. 20 Pin Open top, TSSOP type package test socket
  • Open top test socket
  • TSSOP Package Type
  • 20 Pins
  • 4.39mm Chip body width
  • 6.4mm Leads Tip to tip
  • 6.65mm Body length
  • 0.65mm pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Sold out More due June 3, 2018
  • Drawing request
$28.00
790-41020-101-T Sensata 790-41020-101-T - 20 pin open top test socket, QFN package test socket. 20 Pin Open top test socket, QFN package, thermal connection test socket
  • Open top test socket
  • QFN Package Type
  • 20 Pins
  • Thermal pin connection
  • 4.0mm (0.157") Chip square body width
  • 0.5mm (0.020") Pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$40.00

Part Number Click Enlarge     24 Pin Sockets Price Shopping Cart

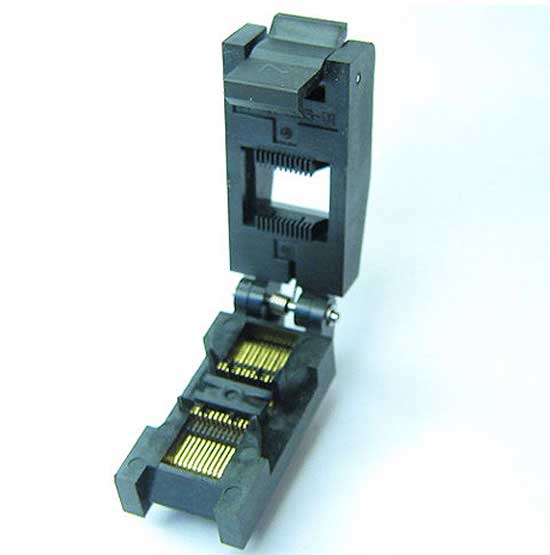

FP-24-0.65-01 Enplas FP-24-0.65-01 - 24 pin closed top SSOP package test socket. 24 Pin Closed top test socket, SOIC package test socket
  • Closed top test socket
  • SSOP Package Type
  • 24 Pins
  • 0.65mm (0.25.6 mil) Pitch device
  • 8.7mm (343 mil) Leads Tip to tip
  • 5.8mm (228 mil) Chip body width
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
$52.00
FP-24-1.27-07 Enplas FP-24-1.27-07 - 24 pin closed top SSOP package test socket. 24 Pin Closed top test socket, SSOP package test socket
  • Closed top test socket
  • SSOP Package Type
  • 24 Pins
  • 1.27mm (50 mil) Pitch device
  • 12.2mm (480 mil) Leads Tip to tip
  • 8.2mm (323 mil) Chip body width
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
$52.00
IC51-0242-577 Yamaichi IC51-0242-577 24 pin closed top SOP package test socket. 24 Pin Closed top, SOP package test socket
  • Closed top test socket
  • SOP Package Type
  • 24 Pins
  • 0.8mm (31 mil) Pitch device
  • 7.8mm (307 mils) Chip body width
  • 10.0mm (394 mils) Leads Tip to tip
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$35.00
IC107-2403-01-G Yamaichi IC107-2403-01-G 24 pin closed top SOJ package test socket. SOJ 24 Pin Live bug Open top, J-lead, SOJ package test socket
  • Open top, Live Bug test socket
  • SOJ Package Type
  • 8.4mm Leads Tip to tip to outside face of the J lead
  • 24 Pins
  • 1.27mm (50 mil) Pitch device
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$24.00
IC107-2403-02-G Yamaichi IC107-2403-02-G 24 pin open top SOJ package test socket. SOJ 24 Pin Live bug Open top, J-lead, SOJ package test socket
  • Open top, Live Bug test socket
  • SOJ Package Type
  • 8.4mm Leads Tip to tip to outside face of the J lead
  • 24 Pins Type 2 pcb pattern
  • 1.27mm (50 mil) Pitch device
  • Mfr. Yamaichi
  • Status - IN STOCK
  • Drawing request
$24.00
OTS-24-0.65-01 Enplas OTS-24-0.65-01 24 pin open top TSOP Type 1 package test socket. 24 Pin Open top, TSOP type package test socket
  • Open top test socket
  • TSOP Package Type 1
  • 24 Pins
  • 4.4mm (173 mils) Chip body width
  • 6.4 mm (252 mils) Leads Tip to tip
  • 8.4mm (331 mils) Chip body length
  • 0.65mm (25.6 mil) pitch
  • Mfr. Enplas
  • Status - IN STOCK
  • Drawing request
30.00
24-6554-10 Aries 24-6554-10 24 pin DIP ZIF test socket. 24 Pin DIP package test socket by Yamaichi
  • DIP ZIF socket
  • 300 to 600 mil wide DIP device pin rows
  • Mounting pins are 0.100 inch centers, 0.600 inch rows
  • Mfr. Aries
  • Status - IN STOCK
  • Drawing request
$22.00
24QN50S14040 Plastronics 24QN50S14040 24 pin Closed top QFN type package test socket 24 Pin Closed top test socket, QFN type package test socket
  • Closed top test socket
  • QFN Package Type
  • 24 Pins
  • 4.0mm Square Body
  • 0.50mm pitch
  • Mfr. Plastronics
  • Status - IN STOCK
  • Drawing request
$95.00
603-5242316 Sensata 672-2280311 open top, 24 pin DIP test socket. 24 Pin Open top, DIP type package test socket
  • Open top test socket
  • DIP Package Type
  • 24 Pins
  • 9.4mm (430 mil) Leads Tip to tip
  • 18.29-18.59mm (720-732 mil) Chip body length
  • 2.54mm (100 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
$24.00
652D0242211 Sensata 652D0242211 SOP open top test socket. 24 Pin Open top, SOP type package test socket
  • Open top test socket
  • SOP Package Type
  • 24 Pins
  • 10.47mm (412 mil) Tip to tip
  • 7.55mm (287 mil) Body width
  • 15.65 (626 mil) Body length>
  • 1.27mm (50 mil) pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
  • Drawing request
  • $13.00
    656C1242211 Sensata 656C1242211 - 24 pin SSOP open top test socket. 24 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 24 Pins
    • 5.3mm (0.209 inch) Chip body width
    • 7.8mm (0.307 inch)Tip to tip
    • 7.2mm (0.283 inch)Body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $28.00
    656C1242211-009 Sensata 656C1242211-009 SSOP open top test socket. 24 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 24 Pins
    • 5.6mm (0.220 inch) Chip body width
    • 7.6mm (0.300 inch)Tip to tip
    • 7.8mm (0.307 inch) Chip body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $28.00
    656J1242211TP Sensata 656JD1242211 SSOP open top test socket. 24 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 24 Pins
    • 3.9mm (154 mil) Chip body width
    • 6.0mm (236 mil) Leads Tip to tip
    • 8.65mm (341 mil) Chip body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $32.00
    656-4242211 Sensata 656-4242211 SSOP open top test socket. 24 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 24 Pins
    • 3.9mm (154 mil) Chip body width
    • 6.0mm (236 mil) Leads Tip to tip
    • 8.65mm (341 mil) Body length
    • 0.635mm (25 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • IN STOCK
    • Drawing request
    $14.00

    Part Number Click Enlarge 26 Pin Sockets     Price Shopping Cart
    IC107-2603-G Sensata IC107-2603 SOJ lead open top test socket. 26 Pin Live bug, open top, SOJ lead type package test socket
    • Open top, SOIC J-lead socket
    • SOJ lead Package Type
    • Live bug
    • 8.4mm Tip to tip
    • 1.27mm (50 mil) pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    20.00

    Part Number Click Enlarge 28 Pin Sockets Price Shopping Cart
    28-6554-10 Aries 28-6554-10 DIP ZIF test socket. 28 Pin DIP package ZIF test socket
    • DIP ZIF socket
    • 300 to 600 mil wide DIP device pin rows
    • Mounting pins are 0.100 inch centers, 0.600 inch rows
    • Mfr. Aries
    • Status - IN STOCK
    • Drawing request
    $18.00
    FP-28-1.27-06 Enplas FP-28-1.27-06 SOIC closed top test socket. 28 Pin Closed top test socket, SOIC package test socket
    • Closed top test socket
    • SOIC Package Type -
    • Footprint layout
    • 28 Pins
    • 1.27mm (50 mil) Pitch device
    • 12.6mm Leads Tip to tip
    • 8.6mm Chip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $90.00
    FP-28-1.27-08 Enplas FP-28-1.27-08 SOIC closed top test socket. 28 Pin Closed top test socket SOIC package test socket by Enplas
    • Closed top test socket
    • SOIC Package Type
    • 28 Pins
    • 1.27mm (50 mil) Pitch device
    • 12.2mm Leads Tip to tip
    • 8.2mm Chip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $90.00
    IC51-0282-673 Yamaichi IC51-0282-673 SOP closed top test socket. 28 Pin Closed top, clamshell SOP lead type package test socket
    • Closed top SOP socket
    • 13.4mm Tip to tip
    • 0.55mm (22 mil) pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    85.00
    IC51-0284-399 Yamaichi IC51-0284-399 PLCC closed top test socket. 28 Pin Closed top, clamshell PLCC lead type package test socket
    • Closed top PLCC socket
    • 1.27mm (50 mil) pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    49.00
    IC100-280352-G Yamaichi IC100-280352-G SOIC J-lead  open top test socket. 28 Pin Dead bug, open top, SOJ lead type package test socket
    • Open top, SOIC J-lead socket
    • SOJ lead Package Type
    • Dead bug
    • 8.4mm Leads Tip to tip to outside face of the J lead
    • 28 Pins Type 2 pcb pattern
    • 1.27mm (50 mil) pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    60.00
    IC120-0284-108 Yamaichi IC120-0284-108 PLCC live bug open top test socket. 28 Pin Open top, live bug PLCC package test socket by Yamaichi
    • Auto-eject live bug
    • Open top test socket
    • PLCC Package Type
    • 28 Pins
    • 1.27 (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $22.00
    IC120-0284-408 Yamaichi IC120-0284-408 PLCC dead bug open top test socket. 28 Pin Open top, dead bug PLCC package test socket by Yamaichi
    • Auto-eject dead bug
    • Open top test socket
    • PLCC Package Type
    • 28 Pins
    • 1.27 (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $22.00
    IC120-0284-508 Yamaichi IC120-0284-508 PLCC live bug open top test socket. 28 Pin Open top, live bug PLCC package test socket by Yamaichi
    • Auto-eject live bug
    • Open top test socket
    • PLCC Package Type
    • 28 Pins
    • 1.27 (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $22.00
    OTS-28-1.27-04 Enplas OTS-28-1.27-04 SOP open top test socket. 28 Pin Open top, SOP type package test socket
    • Open top test socket
    • SOP Package Type
    • 28 Pins
    • 7.5mm Chip body width
    • 10.4mm Leads Tip to tip
    • 1.27mm (0.050 inch) pitch
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    14.00
    OTS-28-0.65-01 Enplas OTS-28-0.65-01 SOP open top test socket. 28 Pin Open top, SOP type package test socket
    • Open top test socket
    • SOP Package Type
    • 28 Pins
    • 4.4mm (173 mil) Chip body width
    • 6.4mm (252 mil) Leads Tip to tip
    • 9.7mm (382 mil) Chip body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    34.00
    OTS-28(34)-0.65-01 Enplas OTS-28(34)-0.65-01 SOP open top test socket. 28 Pin Open top, SOP type package test socket
    • Open top test socket
    • SOP Package Type
    • 28 Pins
    • 5.7mm Chip body width
    • 7.8mm Leads Tip to tip
    • 10.6mm Body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    32.00
    SOJ-28-1.27-03 Enplas SOJ-28-1.27-03 SOJ open top test socket. 28 Pin Open top SOJ package test socket by Enplas
    • Open top test socket
    • SOJ Package Type
    • 28 Pins
    • 1.27mm (50 mil) Pitch device
    • 413 mils Tip to tip
    • 400 milsChip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $24.00
    SOJ-28-1.27-06 Enplas SOJ-28-1.27-06 SOJ open top test socket. 28 Pin Open top SOJ package test socket by Enplas
    • Open top test socket
    • SOJ Package Type
    • 28 Pins
    • 1.27mm (50 mil) Pitch device
    • 348 mils Tip to tip
    • 300 milsChip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $24.00
    28QN50S15050 28 Pin Closed top test socket, QFN type package dual pin contact test socket
    • Closed top test socket
    • QFN Package Type
    • 28 Pins
    • 5.0mm x 5.0mm Body width
    • 0.5mm pitch
    • Mfr. Plastronics
    • Status IN STOCK
    • Drawing request
    $95.00
    28QN65TS16060 Plastronics 28QN65TS16060 QFN closed top test socket. 28 Pin Closed top test socket, QFN type package dual pin contact test socket
    • Closed top test socket
    • QFN Package Type
    • 28 Pins plus center contact
    • 6.0mm x 6.0mm Chip body width
    • 0.65mm (25.6 mil) pitch
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    $95.00
    228-5523-51-1102 3M Textool 228-5523-51-1102 PLCC closed top test socket. 28 Pin Closed top, ZIF, PLCC package test socket by 3M Textool
    • ZIF Live bug
    • Closed top, clamshell test socket
    • PLCC Package Type
    • 28 Pins
    • 1.27 (50 mil) Pitch device
    • Mfr. 3M Textool
    • Status - IN STOCK
    • Drawing request
    $22.00
    647C1282112 Sensata 647C1282112 PLCC open top test socket. 28 Pin Open top, ZIF socket for Castellated type PLCC package.
    • ZIF Live bug socket
    • Open top test socket
    • Castellated typePLCC Package
    • 28 Vertical blade type connections for grooved IC pin connection
    • 1.27 (50 mil) Pitch device
    • Mfr. Sensata
    • Status - IN STOCK
    • Drawing request
    $25.00
    633-2282316 Sensata 633-2282316 DIP open top, 28 pin test burn in socket. 28 Pin DIP package burn in test socket by Sensata
    • DIP 28 pin burn in socket
    • Open top test socket
    • 28 Pin, long lasting, dual face wipe contacts
    • Through hole mounted
    • 8.0mm (.315 inch) Chip body width
    • 9.53mm (.375 inch) Lead width tip to tip maximum
    • 2.54 mm (0.100 inch) pitch
    • Maximum temperature 150° C
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $10.00
    648-1282211-A01 Sensata 647C1282112 TSOP Type 1  open top test socket. 28 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 28 Pins
    • 13.4mm (528 mils) Leads Tip to tip
    • 8.0mm (315 mils) Package width
    • 0.55mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $22.00
    652D0282211 Sensata 652D0282211 SOP  open top test socket. 28 Pin Open top, SOP type package test socket
    • Open top test socket
    • SOP Package Type
    • 28 Pins
    • 10.47mm Leads Tip to tip
    • 7.55mm Chip body width
    • 18.19 Body length
    • 1.27mm (50 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - Sold out More due Feb 25, 2018
    • Drawing request
    $14.00
    652D0282211-001 Sensata 652D0282211-001 SOP  open top test socket. 28 Pin Open top, SOP type package test socket
    • Open top test socket
    • SOP Package Type
    • 28 Pins
    • 10.30mm Tip to tip
    • 7.55mm Body width
    • 18.20 Body length
    • 1.27mm (50 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $24.00
    652D0282211-202 Sensata 652D0282211-202 SOP  open top test socket. 28 Pin Open top, SOP type package test socket
    • Open top test socket
    • SOP Package Type
    • 28 Pins
    • 10.3mm Leads Tip to tip
    • 7.50mm Chip body width
    • 18.05 Body length
    • 1.27mm (50 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $14.00
    656S1322811 Sensata 656S1322811 TSSOP open top test socket. 28 Pin Open top,TSSOP type package test socket
    • Open top test socket
    • TSSOP Package Type
    • 28 Pins
    • 8.1mm (319 mil) Leads Tip to tip
    • 6.10mm (240 mil) Chip body width
    • 9.7mm (433 mil) Body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $16.00
    672-2280311 Sensata 672-2280311 open top, 28 pin SOJ test socket. 28 Pin Open top, SOJ type package test socket
    • Open top test socket
    • SOJ Package Type
    • 28 Pins
    • 10.9-11.38mm (429-448 mil) Leads Tip to tip
    • 18.29-18.59mm (720-732 mil) Chip body length
    • 1.27mm (50 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $24.00

    Part Number Click Enlarge 30 Pin Sockets Price Shopping Cart
    FP-30-0.65-01A Enplas FP-30-0.65-01A Closed top, 30 pin SSOP test socket. 30 Pin Closed top test socket, SSOP package test socket
    • Closed top test socket
    • SSOP Package Type
    • 30 Pins
    • 0.65mm (25.6 mil) Pitch device
    • 8.7mm (340 mils) maximum Leads Tip to tip
    • 5.8mm (228 mil) Chip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $60.00

    Part Number Click Enlarge 32 Pin Sockets Price Shopping Cart
    32-6554-1 Aries 32-6554-1 32 pin DIP ZIF test socket. 32 Pin DIP package test socket by Yamaichi
    • DIP ZIF socket
    • 300 to 600 mil wide DIP device pin rows
    • Mounting pins are 0.100 inch centers, 0.600 inch rows
    • Mfr. Aries
    • Status - IN STOCK
    • Drawing request
    $21.00

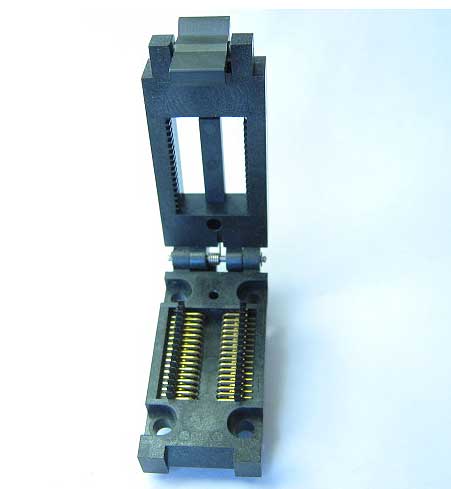

    FP-32-1.27-06 Enplas FP-32-1.27-06 Closed top, 32 pin SOIC test socket. 32 Pin Closed top test socket, SOIC package test socket
    • Closed top test socket
    • SOIC Package Type
    • 32 Pins
    • 1.27mm (50 mil) Pitch device
    • 14.0mm (551 mil) Leads Tip to tip
    • 10.8mm (425 mil) Chip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-FP-32-1.27-06
    $65.00
    FPQ-32-0.08-01 Enplas FPQ-32-0.08-01 Closed top, 32 pin QFP test socket. 32 Pin Closed top test socket, QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 32 Pins
    • 0.8mm (31.5 mil) Pitch device
    • 9mm (354 mils) Leads Tip to tip
    • 7mm (276 mils) Chip body width
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $46.50
    IC51-0322-1031-1 Yamaichi IC51-0322-1031-1 Closed top, 32 pin TSOP Type 1 socket. 32 Pin Closed top, clamshell TSOP Type 1 type package test socket
    • Closed top TSOP Type 1 socket
    • 0.5mm (20 mil) pitch
    • 14.0mm Tip to tip
    • 12.0mm Body width
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    25.00
    IC51-0322-1207-1 Yamaichi IC51-0322-1207-1 Closed top, 32 pin TSOP Type 1 socket. 32 Pin Closed top, clamshell TSOP Type 1 type package test socket
    • Closed top TSOP Type 1 socket
    • 0.5mm (20 mil) pitch
    • 20.0mm Tip to tip
    • 18.0mm Body width
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    25.00
    IC107-3204-G Yamaichi IC107-3204-G open top, 32 pin SOJ socket. 32 Pin SOJ open top, live bug, small outline J-Lead package test socket.
    • Open top test socket
    • SOJ Package Type
    • 32 Pins
    • 1.27mm Pitch device
    • Live bug - Leads down orientation
    • 10.9mm Leads Tip to tip to outside face of the J lead
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $22.00
    IC120-0324-309 Yamaichi IC120-0324-309 open top, 32 pin PLCC socket. 32 Pin open top, live bug, square PLCC package test socket.
    • Open top test socket
    • PLCC square package
    • 32 Pins
    • Live bug - Leads down orientation
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $16.50
    IC160-0324-200 Yamaichi IC160-0324-200 open top, 32 pin surface mount  PLCC socket. 32 Pin PLCC Surface mount open top production quality socket. Package of 10.
    • Package of 10 Open top surface mount sockets
    • PLCC Package Type
    • 32 Pins
    • 1.27mm (0.050 inch) Pitch device
    • 14.95 x 12.4mm (0.590 x 0.490 inch) Body
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $8.00
    IC191-0322-001 Yamaichi IC191-0322-001 open top, 32 pin test socket. 32 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 32 Pins
    • 20.0mm Leads Tip to tip
    • 18.4mm Package width
    • 0.50mm pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $57.00
    OTS-32-0.5-02 Enplas OTS-32-0.5-02 open top, 32 pin TSOP Type 1 test socket. 32 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package
    • 32 Pins
    • 20.0mm Leads Tip to tip
    • 8.20mm Package width
    • 18.4 Package length
    • 0.50mm pitch (0.020")
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $35.00
    OTS-32-1.27-14 Enplas OTS-32-1.27-14 open top, 32 pin TSOP type 2  test socket. 32 Pin Open top TSOP type 2 package test socket
    • Open top test socket
    • TSOP Type 2 package
    • 32 Pins
    • 1.27 (50 mil) Pitch device
    • 11.89mm (468 mils)Leads Tip to tip
    • 10.76mm (434 mils) Chip body width
    • 20.96mm (825 mils) Chip body length
    • Mfr. Enplas
    • Status - Sold Out More due 6/1/18
    • Drawing request
    $36.50
    32LQ50S15050 Plastronics 32LQ50S15050 open top, 32 pin QFN Package test socket. 32 Pin QFN open top test socket, QFN package test socket
    • Open top test socket
    • QFN Package Type
    • Compatible IC drawing
    • 32 Pins PLUS Center spring probe
    • 0.50mm Pitch device
    • 5.0 x 5.0mm (0.197 x 0.197 inch) Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    $106.00
    32QN50S15050 Plastronics 32QN50S15050 closed top, 32 pin QFN Package test socket. 32 Pin Closed top test socket, QFN package test socket
    • Closed top test socket
    • QFN Package Type
    • 32 Pins PLUS Center spring probe
    • 0.50mm Pitch device
    • 5.0 x 5.0mm (0.197 x 0.197 inch) Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    • DIP pins & Bread board adapter 32QFN20-D6-ZL-P
    $138.00
    32QN65S17070 Plastronics 32QN65S17070 closed top, 32 pin QFN Package test socket. 32 Pin Closed top test socket, QFN package test socket
    • Closed top test socket
    • QFN Package Type
    • 32 Pins PLUS Center spring probe
    • 0.65mm (25.6 mil) Pitch device
    • 7.0 x 7.0mm (0.276 x 0.276 inch) Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    $155.00
    648A0322211-A01 Sensata 648A0322211-A01 open top, 32 pin TSOP Type 1 test socket. 32 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 32 Pins
    • 14.0mm (551 mils) Leads tip to tip
    • 8.0mm (315 mils)Package width
    • 12.4 (488 mils) Package length
    • 0.50mm (0.020") pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $25.00
    648B0322211 Sensata 648B0322211 open top, 32 pin TSOP Type 1 test socket. 32 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 32 Pins
    • 13.4 (528 mils) Tip to Tip Leads tip to tip
    • 8.0mm (315 mils)Package width
    • 0.50mm (0.020") pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $25.00
    648-0322211-A01 Sensata 648-0322211-A01 open top, 32 pin TSOP Type 1 test socket. 32 Pin Open top, TSOP Type 1 type package test socket
    • Open top TSOP Type 1 test socket
    • 32 Pins
    • 20.0mm (787 mils) Leads tip to tip
    • 8.0mm (315 mils)Package width
    • 18.4 (724 mils) Package length
    • 0.50mm (0.020") pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $25.00
    652D0322211   Sensata 652D0322211 open top, 32 pin TSOP Type 2 test socket. 32 Pin Open top, TSOP-2 type package test socket
    • Open top test socket
    • TSOP Type 2 Package Type
    • 32 Pins
    • 7.55mm (0.297") Package width
    • 20.73mm (0.816") Package length
    • 1.27mm (50 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $25.00

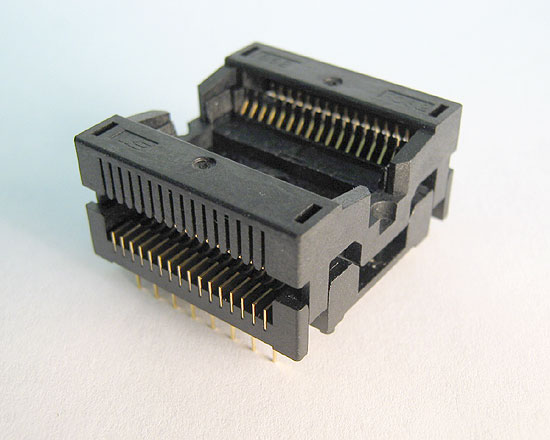

    652F0322211   Sensata 652F0322211 open top, 32 pin TSOP Type 2 test socket. 32 Pin Open top, TSOP-2 package test socket
    • Open top test socket
    • TSOP Type 2 Package Type
    • 32 Pins
    • 11.0mm (0.433") Package width
    • 20.85mm (0.821") Package length
    • 1.27mm (50 mil) pitch
    • 14.04mm (0.533) Leads Tip to tip
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Surface mount PCB pads adapter 32SO42A-SO-ZO-SD
    • DIP pins & Bread board adapter 32SO42-D3-ZO-S
    $16.00
    656L1543212T Sensata 656L1543212T open top, 32 pin SSOP test socket. 32 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 32 Pins
    • 7.5mm (197 mils) Chip body width
    • 10.3mm (406 mils) Leads Tip to tip
    • 11.0mm (433 mils) Body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $35.00
    3007-032-6-07 Sensata 3007-032-6-07 open top, 32 pin TQFP test socket. 32 Pin Open top, TQFP package test socket. Previous part number 7007-032-6-07
    • Open top test socket
    • TQFP Package Type
    • 32 Pins
    • 7.0mm Package Chip body width
    • 9.0mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $34.00

    Part Number Click Enlarge 36 Pin Sockets Price Shopping Cart
    P2036SO Plastronics P2036SO open top, 36 pin TSOP Type 2  test socket. 36 Pin Open top TSOP type 2 package test socket
    • Open top socket
    • TSOP Type 2 Package Type
    • 36 Pins
    • 7.25mm (285 mil) Chip body width
    • 0.8mm (31.5 mil) pitch
    • Mfr. Plastronics
    • Status IN STOCK
    • Drawing request
    $24.00
    3729-381-6217 Loranger 3729-381-6217 open top, 36 pin QFN test socket. 36 Pin Clamshell QFN type package test socket
    • Clamshell closed top socket
    • QFN Package Type
    • 36 Pins plus 2 center pogo pin contacts
    • 10.0 to 8.0mm Chip body width
    • 0.85mm (33.5 mil) pitch
    • 2 center pad pogo pin contacts
    • Mfr. Loranger
    • Status IN STOCK
    • Drawing request
    $155.00
    678-2364211-001 Sensata 678-2364211-001 open top, 36 pin SSOP test socket. 36 Pin Open top SSOP type package test socket
    • Open top socket
    • SSOP Package Type
    • 36 Pins
    • 10.9 to 11.1mm (483mil to 437mil) Chip body width
    • 13.89 to 14.85mm (9547mil to 571mil) to Tip to Tip
    • 0.65mm (25.6 mil) pitch
    • No center pad contacts
    • Mfr. Sensata
    • Status IN STOCK
    • Drawing request
    $54.00
    678-3364211-001 Sensata 678-3364211-001 open top, 36 pin SSOP test socket. 36 Pin Open top SSOP type package test socket
    • Open top socket
    • SSOP Package Type
    • 36 Pins
    • 10.9 to 11.1mm (429mil to 437mil) Chip body width
    • 13.89 to 14.50mm (547mil to 571mil) to Tip to Tip
    • 0.65mm (25.6 mil) pitch
    • Dual IC center pad contacts
    • Mfr. Sensata
    • Status IN STOCK
    • Drawing request
    $62.00

    Part Number Click Enlarge 38 Pin Sockets Price Shopping Cart
    656J0382212 Sensata 656J0382212 open top, 36 pin TSOP test socket. 38 Pin Open top TSOP type package test socket
    • Open top socket
    • TSOP Type 1 Package Type
    • 38 Pins
    • 4.40mm (170 mil) Chip body width
    • 6.4mm (250 mil) to Tip to Tip
    • 0.50mm (20 mil) pitch
    • Mfr. Sensata
    • Status - IN STOCK
    • Drawing request
    $18.00

    Part Number Click Enlarge 40 Pin Sockets Price Shopping Cart
    40-6554-1 Aries 40-6554-1, 40 pin DIP ZIF socket 40 Pin DIP package test socket by Aries
    • DIP ZIF socket
    • 300 to 600 mil wide DIP device pin rows
    • Mounting pins are 0.100 inch centers, 0.600 inch rows
    • Mfr. Aries
    • Status - IN STOCK
    • Drawing request
    $26.00
    IC51-0402-1174-1 Yamaichi IC51-0402-1174-1 closed top, 40 pin TSOP test socket. 40 Pin Closed top, clamshell TSOP type package test socket
    • Closed top TSOP socket
    • 0.5mm (20 mil) pitch
    • 20.0mm Tip to tip
    • 18.0mm Body width
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    62.00
    IC107-4004-G Yamaichi IC107-4004-G OPEN top, 40 pin SOJ live bug test socket. 40 pin SOJ live bug package test socket by Yamaichi
    • SOJ Live bug ZIF socket
    • 1.27mm Pitch
    • 26.4 mm Body length maximum
    • 10.9mm Tip to tip
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $26.00
    OTS-40-1.27-01 Enplas OTS-40-1.27-01 open top, 40 pin SSOP test socket. 40 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 40 Pins
    • 11.4mm Chip body width
    • 14.1mm Leads Tip to tip
    • Body length not needed - Open ended socket -
    • 1.27mm (50 mil) pitch
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    80.00
    40QN40S15050 Plastronics 40QN40S15050 open top, 40 pin QFN test socket. 40 Pin Closed top test socket, QFN package test socket
    • Closed top test socket
    • QFN Package Type
    • 40 Pins PLUS Center spring probe
    • 0.4mm Pitch device
    • 5.0 x 5.0mm (0.197 x 0.197 inch) Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    • DIP pins & Bread board adapter 40QFN16-D6-ZL-S
    $120.00
    790-42040-101 Sensata 790-42040-101 open top, 40 pin QFN test socket. 40 Pin Open top, QFN type package test socket
    • Open top test socket
    • QFN Package Type
    • 40 Pins
    • 6.0mm Square Package
    • 0.50mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $46.00
    648A0402211-A01 Sensata 648A0402211-A01 open top, 40 pin TSOP Type 1 test socket. 40 Pin Open top, TSOP Type 1 type package test socket.
    This socket is obsolete. We have 5 left in stock.
    • Open top test socket
    • TSOP Type 1 Package Type
    • 40 Pins
    • 14.0mm (551 mils) Leads Tip to tip
    • 10.0mm Package width
    • 0.50mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $32.00
    648-0402211-A01 Sensata 648-0402211-A01 open top, 40 pin TSOP Type 1 test socket. 40 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 40 Pins
    • 20.0mm (724 mils) Leads Tip to tip
    • 10.0mm Package width
    • 0.50mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $32.00

    Part Number Click Enlarge 44 Pin Sockets Price Shopping Cart
    FPQ-44-1.0-04D Enplas FPQ-44-1.0-04D closed top, 44 pin TQFP test socket. 44 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 44 Pins
    • 0.1mm (0.39 mils) Pitch device
    • 16mm (630 x 630 mil) Leads Tip to tip
    • 14mm (551 x 551 mil) Square body
    • Mfr. Enplas
    • IN STOCK
    • Drawing request
    $70.00
    FPQ-44-0.8-14C Enplas FPQ-44-0.8-14C closed top, 44 pin TQFP test socket. 44 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 44 Pins
    • 0.8mm (0.32 mil) Pitch device
    • 13.9mm x 13.9mm (520 x 520 mil) Leads Tip to tip
    • 10.0 x 10.0 mm (388 x 388 mil) Square body
    • Mfr. Enplas
    • IN STOCK
    • Drawing request
    $95.00
    FPQ-44-08-16A Enplas FPQ-44-08-16A closed top, 44 pin TQFP test socket. 44 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 44 Pins
    • 0.8mm (0.31 mils) Pitch device
    • 13.2mm (520 x 520 mil) Leads Tip to tip
    • 9.85 mm (388 x 388 mil) Square body
    • Mfr. Enplas
    • IN STOCK
    • Drawing request
    $48.00
    IC107-4404-106-G Yamaichi IC107-4404-106-G open top live bug, 44 pin SOJ test socket. 44 Pin Open top, SOJ, Live bug insertion test socket
    • Open top SOJ test socket
    • Live bug insertion
    • Test & Programming Quality
    • Small outline J-lead Package Type
    • 10.9mm Leads Tip to tip
    • 44 Pins
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $56.00
    IC198-044-2000 Yamaichi, covered top, 44 pin QFP ,production quality socket. 44 Pin Covered surface mount QFP package socket
    • Covered surface mount square QFP socket
    • Production quality, 10 insertions maximum
    • No positioning pins
    • 0.8mm Pitch device
    • 13.2mm Leads Tip to tip
    • 10.0mm body width
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $11.00
    IC120-0444-106 Yamaichi IC120-0444-106 open top PLCC Live Bug, 44 pin test socket. 44 Pin Open top, PLCC package test socket
    • Open top test socket
    • Test & Programming Quality
    • Auto eject
    • PLCC Live Bug Package Type
    • 44 Pins (Alternate PCB through hole pin pattern)
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $14.00
    IC120-0444-206 Yamaichi IC120-0444-206 open top PLCC dead Bug, 44 pin test socket. 44 Pin Open top, PLCC package test socket
    • Open top test socket
    • Test & Programming Quality
    • Auto eject
    • PLCC Dead Bug Package Type
    • 44 Pins (Standard PCB through hole compatibilty pin pattern)
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $14.00
    IC120-0444-306 Yamaichi IC120-0444-306 open top PLCC live Bug, 44 pin test socket. 44 Pin Open top, PLCC package test socket
    • Open top test socket
    • Test & Programming Quality
    • Auto eject
    • PLCC Live Bug Package Type
    • 44 Pins(Standard PCB through hole compatibilty pin pattern)
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $14.00
    IC51-0444-467 Yamaichi IC51-0444-467 closed top QFP, 44 pin test socket. 44 Pin Closed top test socket, QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 44 Pin QFP
    • 10.0mm Package Chip body width
    • 13.9mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-IC51-0444-467
    $40.00
    IC51-0444-825 Yamaichi IC51-0444-825 closed top QFP, 44 pin test socket. 44 Pin Closed top test socket, QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 44 Pins
    • 10.0mm Package Chip body width
    • 12.6mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-IC51-0444-825
    $88.00
    IC51-0444-400 Yamaichi IC51-0444-400 closed top, live bug PLCC, 44 pin, test socket. 44 Pin Closed top test socket, PLCC package test socket $62.00
    IC51-0444-1568 Yamaichi IC51-0444-1568 closed top, QFP, 44 pin, test socket. 44 Pin Closed top test socket, QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 44 Pin QFP
    • 10.0mm Package Chip body width
    • 12.0mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-IC51-0444-467
    $88.00
    44QN50S17070 Plastronics 44QN50S17070 closed top, QFN, 44 pin, test socket. 44 Pin Closed top test socket, QFN package test socket.
    The previous version of this part number was 44QN50TS17070.
    • Closed top test socket
    • QFN Package Type
    • 44 Pins PLUS Center contact
    • 0.50mm Pitch device
    • 7.0 x 7.0mm (0.276 x 0.276 inch) Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $110.00
    44QN65F18080 Plastronics 44QN65F18080 closed top, QFN, 44 pin, test socket. 44 Pin Closed top test socket, QFN package test socket
    • Closed top test socket
    • QFN Package Type
    • 44 Pins PLUS Center contact
    • 0.65mm (25.6 mil) Pitch device
    • 8.0 x 8.0mm (0.315 x 0.315 inch) Body
    • Mfr. Plastronics
    • Status IN STOCK
    • Drawing request
    • Adapters
    $110.00
    656D2442211 Sensata 656D2242211 top, 44 pin, SSOP test socket. 44 Pin Open top, SSOP type package test socket
    • Open top test socket
    • SSOP Package Type
    • 44 Pins
    • 7.5mm (295 mil) Chip body width
    • 10.35mm (407 mil) Leads Tip to tip
    • 17.9mm (707 mil) Chip body length
    • 0.80mm (31 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $19.00
    3010-044-6-08 Sensata 3010-044-6-08 open top, QFP, 44 pin, test socket. 44 Pin Open top, Square QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 44 Pins
    • 10.0mm Square Package Chip body width
    • 12.0mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $45.00
    3310-044-6-08 Sensata 3310-044-6-08 open top, QFP, 44 pin, test socket. 44 Pin Open top, Square QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 44 Pins
    • 10.0mm Square Package Chip body width
    • 13.2mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $45.00
    678-3444211 Sensata 678-3444211 HSOP open top, 242 pin SOP test socket. 44 Pin HSOP package test socket by Sensata
    • HSOP ZIF 44 pin socket
    • Open top test socket
    • 44 Pins
    • 11.0mm (.433 inch) Chip body width
    • 14.10 to 14.30mm (555 to 563 mils) Leads Tip to tip
    • 11.0 (433 mils) Chip body length
    • No IC center pad contacts
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $42.00

    Part Number Click Enlarge 48 Pin Sockets Price Shopping Cart
    IC191-0482-004 Yamaichi IC191-0482-004 open top, TSOP Type 1, 48 pin, test socket. 48 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 48 Pins
    • 20.0mm Leads Tip to tip
    • 18.4mm Package width
    • 0.50mm pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $57.00
    NP506-048-017-CG Yamaichi NP506-048-017-CG open top, QFN, 48 pin, test socket. 48 Pad Open top, 7mm Square, QFN type package test socket with center contact heat sink connection
    • Open top test socket
    • QFN 48 Package Type
    • 48 Pins plus Center contact pin
    • 7.0 mm Square Chip body width
    • 0.50mm pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    165.00
    OQN-48BT-065-01 Enplas NP506-048-017-CG open top, QFN, 48 pin, test socket. 48 Pad Open top, QFN type package test socket with center contact heat sink connection
    • Open top test socket
    • QFN 48 Package Type
    • 48 Pins
    • 9.0 mm Square Chip body width
    • 0.65mm (25.6 mil) pitch
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    86.00
    648-0482211-A01 Sensata 648-0482211-A01 open top, TSOP Type 1, 48 pin, test socket. 48 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 48 Pins
    • 20.0mm Leads Tip to tip
    • 12.0mm Package width
    • 0.50mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-648-0482211-A01
    $24.00
    48LQ50S17070   Plastronics 48LQ50S17070 open top, QFN, 48 pin, test socket. 48 Pad Open top, QFN package test socket with center contact connection
    • Open top test socket
    • QFN 48 Package Type
    • 48 Pins and Spring probe center contact
    • 7.0 mm (0.276 inch) Square Chip body width
    • 0.5mm pitch
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    105.00
    48QN50S17070 Plastronics 48QN50S17070 closed top, QFN, 48 pin, test socket. 48 Pin Closed top test socket, QFN package test socket
    • Closed top test socket
    • QFN Package Type
    • 48 Pins
    • 7.0mm Square Package Chip body width
    • 0.50mm pitch
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    $85.00
    OQN-48BT-065-01 Enplas OQN-48BT-065-01 open top, QFN, 48 pin, test socket. 48 Pad Open top, QFN type package test socket with center contact heat sink connection
    • Open top test socket
    • QFN 48 Package Type
    • 48 Pins
    • 9.0 mm Square Chip body width
    • 0.65mm (25.6 mil) pitch
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    86.00
    OTQ-48-0.5-03 Enplas OTQ-48-0.5-03 open top, QFN, 48 pin, test socket. 48 Pin Open top QFN package test socket
    • Open top test socket
    • QFN Package Type
    • 48 Pins
    • 0.50mm Pitch device
    • 12±0.15mm (0.412 inch) Leads Tip to tip
    • 10.5 mm (0.413 in) Chip body width max
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $74.00
    P2048S-B-AU Plastronics P2048S-B-AU open top, Castellated LCC 48 pin, test socket. 48 Pin Open top castellated LCC package test socket
    • Open top Castellated LCC test socket
    • 48 Pins
    • Live bug
    • 40 mil (1.016mm) Pitch device
    • 516 mil (13.11mm) by 582 mil (14.78mm) Leads Tip to tip
    • Mfr. Plastronics
    • Status - <
    • Status - IN STOCK
    • Drawing request
    $140.00
    790-42048-101 Sensata 790-42048-101 open top, QFN, 48 pin, test socket. 48 Pin Open top, QFN package test socket
    • Open top test socket
    • QFN Package Type
    • 48 Pins
    • 7.0mm Square Package Chip body width
    • 0.50mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-790-42048-101
    $46.00
    3007-048-6-07 Sensata 3007-048-6-07 open top, QFP, 48 pin, test socket. 48 Pin Open top, QFP package test socket. Previous part number was 7007-048-6-07
    • Open top test socket
    • QFP Package Type
    • 48 Pins
    • 7.0mm Package Chip body width
    • 9.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $42.00

    Part Number Click Enlarge 52 Pin Sockets Price Shopping Cart
    IC120-0524-107 Yamaichi IC120-0524-107 open top, PLCC, 52 pin, test socket. 52 Pin Open top, PLCC package test socket by Yamaichi
    • Auto-eject live bug
    • Open top test socket
    • PLCC Package Type
    • 52 Pins
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $19.00
    IC120-0524-207 Yamaichi IC120-0524-207 open top, PLCC, 52 pin, test socket. 52 Pin Open top, PLCC package test socket by Yamaichi
    • Auto-eject dead bug
    • Open top test socket
    • PLCC Package Type
    • 52 Pins
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $30.00
    FPQ-52-0.65-01 Enplas FPQ-52-0.65-01 closed top, TQFP Type 1, 52 pin, test socket. 52 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Type 1 Package Type
    • 52 Pins
    • 0.65mm (25.6 mil) Pitch device
    • 13.9mm (547 x 547 mils) Leads Tip to tip
    • 10.0mm (393 x 393 mils) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $70.00
    FPQ-52-0.65-04 Enplas FPQ-52-0.65-04 closed top, TQFP, 52 pin, test socket. 52 Pin Closed top test socket, TQFP package window lid test socket. Same as the FPQ-52-0.65-01 except it has a window in the lid.
    • Closed top test socket
    • TQFP Package Type
    • 52 Pins
    • Window lid
    • 0.65mm (25.6 mil) Pitch device
    • 12.0mm (472 x 472 mils) Leads Tip to tip
    • 10.0mm (393 x 393 mils) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $70.00
    656L1545212 Sensata 656L1545212 open top, SOIC, 52 pin, test socket. 52 Pin Open top, SOIC type package test socket
    • Open top test socket
    • SOIC Package Type
    • 52 Pins
    • 7.5mm Chip body width
    • 10.3mm Leads Tip to tip
    • 18.10mm Body length
    • 0.65mm (25.6 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $24.00

    Part Number Click Enlarge 54 Pin Sockets Price Shopping Cart
    IC296-0542-018P Yamaichi IC296-0542-018P open top, SOP, 54 pin, test socket. 54 Pin Open top, SOP, TSOP type I I package test socket
    • Open top test socket
    • SOP TSOP type II Package Type
    • 54 Pins
    • 0.8mm Pitch device
    • Body width 10.16mm
    • Tip to tip 11.76mm
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $44.00

    Part Number Click Enlarge 56 Pin Sockets Price Shopping Cart
    IC51-0562-1387 Yamaichi IC51-0562-1387 closed top, SOP, 56 pin, test socket. 56 Pin hinge lid, clamshell type SOP package test socket
    • Hinge lid calamshell socket
    • SOP Package Type
    • 56 Pins
    • 7.6mm Chip body width
    • 10.3mm Leads Tip to tip<
    • 0.635mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle IC51-0562-1387
    • Status - IN STOCK
    • Drawing request
    $72.00
    IC191-0562-003 Yamaichi IC191-0562-003 open top, TSOP Type 1, 56 pin, test socket. 56 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 56 Pins
    • 20.0mm Leads Tip to tip
    • 18.4mm Package width
    • 0.50mm pitch
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $84.00
    56QN40TS17070-C Plastronics 56QN40TS17070-C closed top, QFN, 56 pin, test socket. 56 Pin Clamshell closed top QFN type package test socket
    • Clamshell closed top test socket
    • QFN Package Type
    • 56 Pins
    • 7.0mm x 7.0mm (0.276" square) Leads Tip to tip
    • Center Contact
    • 0.40mm pitch
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    $134.00
    648-0562211-A01 Sensata 648-0562211-A01 closed top, TSOP Type 1, 56 pin, test socket. 56 Pin Open top, TSOP Type 1 type package test socket
    • Open top test socket
    • TSOP Type 1 Package Type
    • 56 Pins
    • 20.0mm Leads Tip to tip
    • 14.0mm Package width
    • 0.50mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $32.00
    656K0562211 Sensata 656K0562211 open top, SSOP, 56 pin, test socket. 56 Pin Open top, SSOP package test socket
    • Open top test socket
    • SSOP Package Type
    • 56 Pins
    • 8.1mm (319 mil) Leads Tip to tip
    • 6.2mm (244 mil) Package Chip body width
    • 14.0mm (551 mil) Package body length
    • 0.50mm (20 mil) pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $32.00
    696H1542213WE08 Sensata 696H1542213WE08 open top, TSOP type 2, 56 pin, test socket. 56 Pin Open top, SSOP package test socket
    • Open top test socket
    • TSOP type 2 Package Type
    • 56 Pins
    • 11.8mm Leads Tip to tip
    • 10.2mm Package Chip body width
    • 22.4mm Package body length max
    • 0.80mm pitch
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $20.50
    790-62056-101 Sensata 790-62056-101 open top, QFN, 56 pin, test socket. 56 Pin Open top test socket, QFN package test socket with additinal, 57th center body contact.
    • Open top test socket clamshell socket
    • QFN Package Type
    • 56 Pins plus one center body contact
    • 7.0mm X 7.0mm Leads Tip to tip
    • 0.40mm pitch
    • Mfr. Sensata (Formerly Wells-CTI Antares)
    • Status - IN STOCK
    • Drawing request
    $56.00
    03734-571-6218A Loranger 03734-571-6218A closed top, QFN, 56 pin, test socket. 56 Pin Closed top test socket, QFN package test socket with additinal, 57th center body contact.
    • Closed top test socket clamshell socket
    • QFN Package Type
    • 56 Pins plus one center body contact
    • 8.0mm X 8.0mm Leads Tip to tip
    • 0.50mm pitch
    • Mfr. Loranger
    • Status - IN STOCK
    • Drawing request
    $115.00

    Part Number Click Enlarge 60 Pin Sockets Price Shopping Cart
    790-41060-101T Sensata 790-41060-101T closed top, QFN, 60 pin, test socket. 60 Pin Open top,thermal connection test socket, QFN package test socket
    • QFN package type
    • 60 Pins plus center contact
    • Thermal connect pins
    • 0.5mm (20 mil) Pitch device
    • 9.0mm x 9.00mm square package
    • Mfr. Sensata
    • Status - IN STOCK
    • Drawing request
    $70.00

    Part Number Click Enlarge 64 Pin Sockets Price Shopping Cart
    FPQ-64-0.8-10 Enplas FPQ-64-0.8-10 closed top, TQFP, 64 pin, test socket. 64 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 64 Pins
    • 0.8mm (32 mil) Pitch device
    • 17.2mm (677 x 677 mils) Leads Tip to tip
    • 14.0mm (551 x 551 mils) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $70.00
    IC51-0644-807 Yamaichi IC51-0644-807 closed top, TQFP, 64 pin, test socket. 64 Pin Closed top test socket, QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 64 Pin QFP
    • 10.0mm Package Chip body width
    • 12.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    • Socket receptacle RT-IC51-0644-807
    $95.00
    IC51-0644-820-2 Yamaichi IC51-0644-820-2 closed top, QFP, 64 pin, test socket. 64 Pin Closed top test socket, rectanglar QFP package test socket
    • Closed top test socket
    • Rectangular QFP Package Type
    • 64 Pins
    • 14.0mm x 20.0mm Package Chip body width
    • 17.6mm x 23.6mm Leads Tip to tip
    • 1.0mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $145.00
    IC189-0642-007 Yamaichi IC189-0642-007 open top, TSOP type 2, 64 pin, test socket. 64 Pin Open top, TSOP type 2 package test socket
    • Open top test socket
    • TSOP type 2 Package Type
    • 64 Pins
    • 12.0mm Package Chip body width
    • 14.25mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $90.00
    OTQ-64-0.4-01 Enplas OTQ-64-0.4-01 open top, QFP, 64 pin, test socket. 64 Pin Open top test socket, QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 64 Pins
    • 0.4mm (32 mil) Pitch device
    • 9.0mm (354 mils) Leads Tip to tip
    • 7.0mm (276 mils) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $110.00
    64LQ50S19090 Plastronics 64LQ50S19090 open top, QFN, 64 pin, test socket. 64 Pin Open top test socket, QFN package test socket
    • Open top test socket
    • QFN Package Type
    • 64 Pins PLUS Center contact
    • 0.50mm Pitch device
    • 9.0 x 9.0mm Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $96.00
    64QN50S19090 Plastronics 64QN50S19090 closed top, QFN, 64 pin, test socket. 64 Pin Closed top test socket, QFN package test socket
    • Closed top test socket
    • QFN Package Type
    • 64 Pins PLUS Center contact
    • 0.50mm Pitch device
    • 9.0 x 9.0mm (354 x 354 mil) Body
    • Mfr. Plastronics
    • Status - IN STOCK
    • Drawing request
    $120.00
    3010-064-6-08 Sensata 3010-064-6-08 open top, QFP, 64 pin, test socket. 64 Pin Open top, QFP package test socket. Previous part number was 7010-064-6-08
    • Open top test socket
    • QFP Package Type
    • 64 Pins
    • 10.0mm Package Chip body width
    • 12.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
      For components such as PIC18F8620, PIC18F8621, PIC18F8622, PIC18F8627, PIC18F8680, PIC18F86J10, PIC18F86J11, PIC18F86J15, PIC18F86J16, PIC18F86J50, PIC18F86J55, PIC18F86J60, PIC18F86J65 PIC18F8720, PIC18F8722, PIC18F87J10, PIC18F87J11, PIC18F87J50, PIC18F87J60 PIC24FJ118GA108, PIC24FJ128GA008, PIC24FJ128GB108, PIC24FJ192GA108, PIC24FJ192GB108, PIC24FJ256GA108, PIC24FJ256GB108, PIC24FJ64GA008, PIC24FJ64GB108, PIC24FJ96GA008 dsPIC30F5013, dsPIC30F5016, dsPIC30F6010A, dsPIC30F6013A, dsPIC30F6014A, dsPIC33FJ128GP708, dsPIC33FJ128MC708, dsPIC33FJ64GP708, dsPIC33FJ64MC508
    $42.00
    680H0644111 Sensata 680H0644111 open top, QFP, 64 pin, test socket. 64 Pin Open top, QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 64 Pins
    • 14.0mm Package Chip body width
    • 16.0mm Leads Tip to tip
    • 0.8mm (.031 inch) Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI Antares)
    • Status - IN STOCK
    • Drawing request
    $28.00
    3014-064-6-08 Sensata 3014-064-6-08 open top, QFP, 64 pin, test socket. 64 Pin Open top, QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 64 Pins
    • 14.0mm Package Chip body width
    • 16.0mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request 64QFS31D-QF-ZO-SD
    • Adapters
    $52.00
    3414-064-6-08 Sensata Technologies 7414-064-6-08 open top,64 pin QFP test socket. 64 Pin Open top, QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 64 Pins
    • 14.0mm Package Chip body width
    • 17.6mm Leads Tip to tip
    • 0.8mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $52.00

    Part Number Click Enlarge 66 Pin Sockets Price Shopping Cart
    696H2662213WE08 Sensata 696H2662213WE08 closed top, SSOP, 66 pin, test socket. 66 Pin Open top test socket, SSOP package test socket
    • Open top test socket
    • SSOP Package Type
    • 66 Pins
    • 10.20mm (402 mil) Package Chip body width
    • 11.80mm (465 mil) Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status -IN STOCK
    • Drawing request
    • Adapters
    $22.00

    Part Number Click Enlarge 68 Pin Sockets Price Shopping Cart
    IC51-0684-390-1 Yamaichi IC51-0684-390-1 closed top, PLCC, 68 pin, test socket. 68 Pin Closed top clamshell type , PLCC package test socket
    • Closed top PLCC test socket
    • PLCC 68 Standard Package Type
    • 68 Pin
    • 24.34mm (958 mil) Leads Tip to tip
    • 1.27mm (50 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $40.00
    IC120-0684-304 Yamaichi IC120-0684-304 open top, PLCC, 68 pin, test socket. 68 Pin open top, live bug PLCC test socket
    • Open top test socket
    • PLCC Package Type
    • 68 Pins
    • Live bug
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $45.00

    Part Number Click Enlarge 70 Pin Sockets Price Shopping Cart
    CSP070-062 TI CSP070-062 open top, SOP Package, 70 pin, test socket. 70 Pin Open top, SOP package test socket
    • Open top test socket
    • SOP Package Type
    • 70 Pins
    • 12.25mm Package Chip body width
    • 16.3mm Leads Tip to tip
    • 28.1mm body length
    • 0.8mm Pitch device
    • Mfr. TI
    • Status - IN STOCK
    • Drawing request
    $28.00

    Part Number Click Enlarge 72 Pin Sockets Price Shopping Cart
    72QN50HS1100100 Pleastronics 72QN50HS1100100  closed top, QFN, 72 pin, test socket. 72 Pin Closed top QFN package test socket
    • Closed top, clamshell type test socket
    • QFN Package Type
    • 72 Pins
    • 10.0 x 10.0mm Package Chip body width
    • 0.50mm Pitch device
    • Mfr. Pleastronics
    • Status - IN STOCK
    • Drawing request
    $245.00

    Part Number Click Enlarge 80 Pin Sockets Price Shopping Cart
    FPQ-80-0.5-04 Enplas FPQ-80-0.5-04  closed top, TQFP, 80 pin, test socket. 80 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 80 Pins
    • 0.5mm (19.6 mil) Pitch device
    • 14 x 14mm (551 x 551 mils) Leads Tip to tip
    • 12 x 12mm (472 x 472 mil) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $115.00
    FPQ-80-0.65-01 Enplas FPQ-80-0.65-01  closed top, TQFP, 80 pin, test socket. 80 Pin Closed top test socket, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 80 Pins
    • 0.65mm (25.6 mil) Pitch device
    • 17.2mm (677 x 677 mils) Tip to tip
    • 14 x 14mm (551 x 551 mils) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $85.00
    FPQ-80-0.08-02 Enplas FPQ-80-0.08-02  closed top, TQFP, 80 pin, test socket. 80 Pin Closed top test socket, QFP square package test socket.
    • Closed top test socket
    • TQFP Square Package Type
    • 80 Pins
    • 0.65mm (25.6 mil) Pitch device
    • 17.2 x 17.2mm (677 mils) Leads Tip to tip
    • 14 x 14mm (551 x 551 mils) body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $85.00
    FPQ-80-0.08-12 Enplas FPQ-80-0.08-12  closed top, TQFP, 80 pin, test socket. 80 Pin Closed top test socket, QFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 80 Pins
    • 0.8mm (32 mil) Pitch device
    • 17.2 x 23.2mm (0.677 x 0.913 mils) Leads Tip to tip
    • 14 x 20mm (551 x 787 mils) body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $85.00
    IC51-0804-795 Yamaichi IC51-0804-795 Closed top 80 pin QFP test socket. 80 Pin Hinge lid, clamshell, QFP package test socket
    • Hinge lid clamshell socket
    • QFP Package Type
    • 80 Pins
    • 14.0mm Body width
    • 16.0mm Leads Tip to tip
    • 0.65mm (25.6 mil)Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $199.00
    IC51-0804-808 Yamaichi IC51-0804-808 Closed top 80 pin QFP test socket. 80 Pin Hinge lid, clamshell, QFP package test socket
    • Hinge lid clamshell socket
    • QFP Package Type
    • 80 Pins
    • 12x12mm Body size
    • 14.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $199.00
    IC201-0804-005 Yamaichi IC201-0804-005 open top 80 pin QFP test socket. 80 Pin Hinge lid, clamshell, QFP package test socket
    • Open top socket
    • QFP Rectangular Package Type
    • 80 Pins
    • 14.0 x 20mm Body size
    • 17.9 x 23.9mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $95.00
    3012-080-06-08 Sensata 3012-080-06-08 open top 80 pin TQFP test socket. 80 Pin Open top, QFP package test socket. Previous part number was 7012-080-06-08.
    • Open top test socket
    • TQFP Package Type
    • 80 Pins
    • 12.0mm 12.0mm Square Package Chip body width
    • 14.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    $62.00
    3014-080-06-08 Sensata 3014-080-6-08 open top 80 pin TQFP test socket. 80 Pin Open top, QFP package test socket. Previous part number as 7014-080-06-08
    • Open top test socket
    • QFP Package Type
    • 80 Pins
    • 14.0mm Package Chip body width
    • 16.0mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • 0.22-0.38 Pin width
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $75.00
    3314-080-06-08 Sensata 3314-080-06-08 open top 80 pin TQFP test socket. 80 Pin Open top, TQFP package test socket. Previous part number as 7314-080-06-08
    • Open top test socket
    • TQFP Package Type
    • 80 Pins
    • 14.0mm Package Chip body width
    • 17.2mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $75.00
    790-42080-101T Sensata 790-42080-101T open top QFN package, center thermal pin connection. 80 Pin Open top QFN package, center thermal pin connection test socket
    • 80 Pins Plus center contact
    • Thermal pin connetion
    • 0.5mm (20 mil) Pitch device
    • 12.0mm X 12.0mm square package
    • Mfr. Sensata
    • Status - IN STOCK
    • Drawing request
    $90.00

    Part Number Click Enlarge 84 Pin Sockets Price Shopping Cart
    IC120-0844-103 Yamaichi IC120-0844-303 open top 84 pin PLCC test socket. 84 Pin open top, live bug PLCC package test socket
    • Open top socket
    • 84 Pins
    • 1.27mm Pitch
    • PLCC Square Package Type
    • Live bug
    • Mfr. Yamaichi
    • Status - IN STOCK
    • Drawing request
    $40.00
    IC120-0844-303 Yamaichi IC120-0844-303 open top 84 pin PLCC test socket. 84 Pin open top, live bug PLCC package test socket
    • Open top socket
    • 84 Pins
    • 1.27mm Pitch
    • PLCC Square Package Type
    • Live Bug
    • Mfr. Yamaichi
    • Status - Sold out More due April 5, 2018
    • Drawing request
    $40.00
    IC51-0844-401 Yamaichi IC51-0844-401 closed top 84 pin PLCC test socket. 84 Pin hinge lid, clamshell type PLCC package test socket
    • Hinge lid calamshell socket
    • PLCC Square Package Type
    • 84 Pins
    • 29.36mm (1.156 inch) Chip body width
    • 30.53mm (1.185 inch) Leads Tip to tip
    • 1.27mm (50 mil) Pitch
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-0844-401
    • Status - IN STOCK
    • Drawing request
    $110.00
    PLCC-84-1.27-31 Enplas PLCC-84-1.27-31 open top 84 pin PLCC test socket. 84 Pin Open top, PLCC. live bug package test socket $74.00

    Part Number Click Enlarge 100 Pin Sockets Price Shopping Cart
    FPQ-100-0.05-10A Enplas FPQ-100-0.05-10A open top 100 pin TQFP test socket. 100 Pin Closed top test socket, QFP package test socket.
    • Closed top test socket with IC spring lid loading
    • TQFP Package Type
    • 100 Pins
    • 0.5mm (19.6 mil) Pitch device
    • 16.0 x 16.0mm (630 x 630 mils) Leads Tip to tip
    • 14 x 14mm ( 551 x 551 mils) Squre body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $58.00
    FPQ-100-0.05-11 Enplas FPQ-100-0.05-11 closed top 100 pin TQFP test socket. 100 Pin Closed top test socket, QFP package test socket.
    • Closed top test socket with IC gimbal lid IC pin loading
    • TQFP Package Type
    • 100 Pins
    • 0.5mm (19.6 mil) Pitch device
    • 15.0 x 15.0mm (590 x 590 mils) Leads Tip to tip
    • 14 x 14mm ( 551 x 551 mils) Squre body
    • Same as FPQ-100-0.05-13
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $58.00
    IC234-1004-45-N Yamaichi IC234-1004-45-N open top 100 pin TQFP test socket. 100 Pin Open top type TQFP package test socket. "-N" Means no plastic locating pin.

    For TQFP components such as PIC32MX120F064H PIC32MX130F128H, PIC32MX150F256H Microcontrollers PIC32MX170F512H
    • Open top socket
    • TQFP Square Package Type
    • 100 Pins
    • 12.0 x 12.0mm Chip body width
    • 14.0 x 14.0mm Leads Tip to tip
    • 0.4mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC234-1004-45
    • Status - IN STOCK
    • Drawing request
    $225.00
    IC357-1004-053P Yamaichi IC357-1004-053P open top 100 pin TQFP test socket. 100 Pin Open top type TQFP package test socket. $105.00
    IC51-1004-809 Yamaichi IC51-1004-809 closed top 100 pin TQFP test socket. 100 Pin hinge lid, clamshell type QFP package test socket
    • Hinge lid calamshell socket
    • TQFP Square Package Type
    • 100 Pins
    • 14.0mm Chip body width
    • 16.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1004-809
    • Status - IN STOCK
    • Drawing request
    $98.00
    IC51-1004-814-2 Yamaichi IC51-1004-814-6 closed top 100 pin QFP test socket. 100 Pin hinge lid, clamshell type QFP package test socket
    • Hinge lid calamshell socket
    • QFP Rectangular Package Type
    • 100 Pins
    • 14.0 x 16.0mm Chip body width
    • 15.2 x 22.0mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1004-814-2
    • Status - IN STOCK
    • Drawing request
    $95.00
    IC51-1004-814-6 Yamaichi IC51-1004-814-6 closed top 100 pin QFP test socket. 100 Pin hinge lid, clamshell type QFP package test socket
    • Hinge lid calamshell socket
    • QFP Rectangular Package Type
    • 100 Pins
    • 14.0 x 20.0mm Chip body width
    • 15.2 x 22.0mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1004-814-2
    • Status - IN STOCK
    • Drawing request
    $95.00
    IC51-1004-1919-10 Yamaichi IC51-1004-1919-10 closed top 100 pin QFP test socket. 100 Pin hinge lid,0.4mm pitch, clamshell type QFP package test socket
    • Hinge lid calamshell socket
    • QFP Rectangular Package Type
    • 100 Pins
    • 12.0 x 12.0mm Square Chip body width
    • 14.0 x 14.0mm Leads Tip to tip
    • 0.4mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1004-1919-10
    • Status - IN STOCK
    • Drawing request
    $260.00
    3014-100-6-08 Sensata 3014-100-6-08 closed top 100 pin QFP test socket. 100 Pin Open top, QFP package test socket. Previoius part number was 7014-100-6-08.
    • Open top test socket
    • QFP Package Type
    • 100 Pins
    • 14.0mm Package Chip body width
    • 16.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Status - IN STOCK
    • Drawing request
    • Adapters
    $80.00
     3042-100-6-08 Sensata 3042-100-6-08 Open top, 100 Pin QFP Rectangular Package test socket 100 Pin Open top, QFP Rectangular Package test socket
    • Open top test socket
    • QFP Rectangular Package Type
    • 100 Pins
    • 14.0 x 20.0 Package Chip body width
    • 16.0 x 22.0mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3042-100-6-08
    • Status - IN STOCK
    • Drawing request
    $72.00
     3342-100-6-07 Sensata 3042-100-6-08 Open top, 100 Pin QFP Rectangular Package test socket 100 Pin Open top, QFP Rectangular Package test socket
    • Open top test socket
    • QFP Rectangular Package Type
    • 100 Pins
    • 14.0 x 20.0 Package Chip body width
    • 17.2 x 23.2mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-7342-100-6-07
    • Status - IN STOCK
    • Drawing request
    $62.00

    Part Number Click Enlarge 112 Pin Sockets Price Shopping Cart
    IC51-1124-1036-2 Yamaichi IC51-1124-1036-2closed top 112 pin QFP test socket. 112 Pin Closed top test socket, hinge lid QFP package test socket
    • Open top test socket
    • QFP SquarePackage Type
    • 112 Pins
    • 20.0mm Package body width
    • 23.20mm tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1124-1036-2
    • Status - IN STOCK
    • Drawing request
    $130.00
    3020-112-6-08 Sensata 3020-112-6-08 Open top, 112 Pin TQFP Rectangular Package test socket 112 Pin Open top, TQFP QFP package test socket. Previous part number was 7020-112-6-08
    • Open top test socket
    • QFP TQFP Package Type
    • 112 Pins
    • 20.0mm Package Chip body width
    • 22.0mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Lower operating force socket
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle  RT-7020-112-6-08
    • Status - IN STOCK
    • Drawing request
    $85.00

    Part Number Click Enlarge 120 Pin Sockets Price Shopping Cart
    FPQ-120-0.8-03 Enplas FPQ-120-0.8-03 Open top, 112 Pin TQFP Rectangular Package test socket 120 Pin Clamshell closed top, TQFP package test socket.
    • Open top test socket
    • TQFP Package Type
    • 120 Pins
    • 0.8mm Pitch device
    • 31.9mm (1.256 inch) square Tip to tip
    • 28.0mm (1.102 inch) square body
    • Mfr. Enplas
    • Socket receptacle RT-FPQ-120-0.8-03
    • Status - IN STOCK
    • Drawing request
    $120.00
    3014-120-6-48 Sensata 3014-120-6-48 Open top, 120 Pin TQFP Package test socket 120 Pin Open top, TQFP package test socket.
    • Open top test socket
    • TQFP Package Type
    • 120 Pins
    • 0.4mm Pitch device
    • 16.0mm square Tip to tip
    • 14.0mm square body
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3014-120-6-48
    • Status - IN STOCK
    • Drawing request
    $96.00

    Part Number Click Enlarge 128 Pin Sockets Price Shopping Cart
    FPQ-128-0.8-05 Enplas FPQ-128-0.8-05 Closed top, 128 Pin TQFP Package test socket 128 Pin Closed top test socket, TQFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 128 Pins
    • 0.25 mil Pitch device
    • 1.092 x 1.092 mils Tip to tip
    • 872 x 872 mils square body
    • Mfr. Enplas
    • Socket receptacle RT-FPQ-128-0.8-05
    • Status - IN STOCK
    • Drawing request
    $90.00
    IC51-1284-976-1   Yamaichi IC51-1284-976-1 Closed top, 128 Pin TQFP Package test socket 128 Pin Closed top test socket, clamshell QFP,31.9mm Leads Tip to tip IC test socket
    • Closed top test socket
    • QFP Package Type
    • 128 Pins
    • 28.0mm Square Package Chip body width
    • 30.0mm tip to tip
    • 0.8mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1284-976-1
    • Status - IN STOCK
    • Drawing request
    $140.00
    IC51-1284-1433   Yamaichi IC51-1284-1433 Closed top, 128 Pin TQFP Package test socket 128 Pin Closed top test socket, clamshell for rectanglar QFP components
    • Closed top test socket
    • QFP Package Type
    • 128 Pins
    • 14.0mm X 20.0mm rectanglar components
    • 16.0mm x 20.0mm tip to tip
    • 0.5mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1284-1433
    • Status - IN STOCK
    • Drawing request
    $150.00
    3014-128-6-38 Sensata 3014-128-6-38 Open top, 128 Pin TQFP Package test socket 128 Pin Open top, QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 128 Pins
    • 14.0mm Square Package Chip body width
    • 16.0mm Leads Tip to tip
    • 0.4mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3014-128-6
    • Status - IN STOCK
    • Drawing request
    $104.00
    3014-128-6-38-OE Sensata 3014-128-6-08-OE Open top, 128 Pin TQFP Package test socket 128 Pin Center thermal pad, Open top, QFP package test socket
    • Open top test socket
    • IC Center Thermal Contact
    • QFP Package Type
    • 128 Pins
    • 14.0mm Square Package Chip body width
    • 16.0mm Leads Tip to tip
    • 0.4mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3014-128-6-OE
    • Status - IN STOCK
    • Drawing request
    $259.00
    3042-128-6-08 Sensata 3042-128-6-08 Open top, 128 Pin TQFP Package test socket 128 Pin Open top, Rectangular QFP package test socket
    • Open top test socket
    • Rectangular QFP Package Type
    • 128 Pins
    • 20.0 x 14.0mm Rectangular Package Chip body width
    • 22.0 x 16.0mm Leads Tip to tip
    • 0.50mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3042-128-6
    • Status - IN STOCK
    • Drawing request
    $82.00
    3342-128-6-17 Sensata 3342-128-6-17 Open top, 128 Pin TQFP Package test socket 128 Pin Open top,Rectangular QFP package test socket
    • Open top test socket
    • Rectangular QFP Package Type
    • 128 Pins
    • 20.0 x 14.0mm Rectangular Package Chip body width
    • 23.2 x 17.2mm Leads Tip to tip
    • 0.50mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3342-128-6-17
    • Status - IN STOCK
    • Drawing request
    $80.00

    Part Number Click Enlarge 132 Pin Sockets Price Shopping Cart
    IC51-1324-828 Yamaichi IC51-1324-828 Closed top, 128 Pin TQFP Package test socket 132 Pin Closed top test socket, QFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 132 Pins
    • 0.635mm (25 mils) Pitch device
    • 27.94 x 27.94mm Leads Tip to tip
    • 27.43 x 27.43mm square body
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-1324-828
    • Status - IN STOCK
    • Drawing request
    $140.00

    <
    Part Number Click Enlarge 136 Pin Sockets Price Shopping Cart
    FPQ-1364-0.8-01 Enplas FPQ-1364-0.8-01 Closed top, 136 Pin TQFP Package test socket 136 Pin Closed top test socket, TQFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 136 Pins
    • 0.8mm (32 mil) Pitch device
    • 31.2 x 31.2 (1.228 x 1.228 inch)Tip to tip
    • 28 x 28mm (1.102 x 1.102 inch) square body
    • Mfr. Enplas
    • Status - IN STOCK
    • Drawing request
    $55.00

    Part Number Click Enlarge 144 Pin Sockets Price Shopping Cart
    FPQ-144-0.65-01 Enplas FPQ-144-0.65-01 Closed top, 144 Pin TQFP Package test socket 144 Pin Closed top test socket, TQFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 144 Pins
    • 0.65mm (25.6 mil) Pitch device
    • 1.228 x 1.228 mils Tip to tip
    • 1.102 x 1.102 mils square body
    • Mfr. Enplas
    • Socket receptacle  RT-FPQ-144-0.65-01
    • Status - IN STOCK
    • Drawing request
    $100.00
    IC51-1444-1014 Yamaichi IC51-1444-1014 Closed top, 144 Pin TQFP Package test socket 144 Pin Closed top test socket, QFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 144 Pins
    • 0.65mm (25.6 mil) Pitch device
    • 31.2 x 31.2mm Leads Tip to tip
    • 28.0 x 28.0mm square body
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-1444-1014
    • Status - IN STOCK
    • Drawing request
    $195.00
    IC51-1444-1354 Yamaichi IC51-1444-1354 Closed top, 144 Pin TQFP Package test socket 144 Pin Closed top test socket, QFP package test socket.
    • Closed top test socket
    • TQFP Package Type
    • 144 Pins
    • 0.5mm Pitch device
    • 22.0 x 22.0mm Tip to tip
    • 20.0 x 20.0mm square body
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-1444-1134
    • Status - IN STOCK
    • Drawing request
    $242.00
    680HA1440111-001 Sensata 680HA1440111-001 Open top, 144 Pin TQFP Package test socket 144 Pin Open top, TQFP package test socket
    • Open top dual contact test socket
    • TQFP Package Type
    • 144 Pins
    • 20.0mm Package Chip body width
    • 22.0mm Leads Tip to tip
    • 0.50mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle  RT-680HA1440111-001
    • Status - IN STOCK
    • Drawing request
    $120.00
    3020-144-6-08 Sensata 3020-144-6-08 Open top, 144 Pin TQFP Package test socket 144 Pin Open top, TQFP package test socket
    • Open top test socket
    • TQFP Package Type
    • 144 Pins
    • 20.0mm Package Chip body width
    • 22.0mm Leads Tip to tip
    • 0.50mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle  RT-7020-144-6-08
    • Status - IN STOCK
    • Drawing request
    $100.00
    3328-144-6-08 Sensata 3328-144-6-08 open top, 144 pin, TQFP test socket. 144 Pin Open top, TQFP package, 0.65mm pitch test socket
    • Open top test socket
    • TQFP Package Type
    • 144 Pins
    • 28.0mm Package Chip body width
    • 31.225mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle  RT-3328-144-6-08
    • Status - IN STOCK
    • Drawing request
    $110.00

    Part Number Click Enlarge 160 Pin Sockets Price Shopping Cart
    IC51-1604-845-1   Yamaichi IC51-1604-845-1 Closed top, 160 Pin QFP Package test socket 160 Pin Closed top Clamshell QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 160 Pins
    • 28.0mm Square Package Chip body width
    • 30.0 x 30.0mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1604-845-1
    • Status - IN STOCK
    • Drawing request
    $148.00
    IC51-1604-845-4 Yamaichi IC51-1604-845-4 Closed top, 160 Pin QFP Package test socket 160 Pin Closed top Clamshell QFP package test socket
    • Closed top test socket
    • QFP Package Type
    • 160 Pins
    • 28.0mm Square Package Chip body width
    • 31.2 x 31.2mm Leads Tip to tip
    • 0.65mm (25.6 mil) Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1604-845-4
    • Circuit board surface mount adapter 160QFS26A-QF-ZL-SD
    • Status - IN STOCK
    • Drawing request
    $148.00
    3024-160-6-08 Sensata 3024-160-6-08 Open top, 160 Pin TQFP Package test socket 160 Pin Open top QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 160 Pins
    • 25.11mm Package Chip body width
    • 26.0mm Leads tip to tip
    • 0.5mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-7024-160-6-08
    • Status - IN STOCK
    • Drawing request
    $116.00
    3328-160-6-08 Sensata 3328-160-6-08 Open top, 160 Pin TQFP Package test socket 160 Pin Open top QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 160 Pins
    • 28.0mm Package Chip body width
    • 31.2mm Leads tip to tip
    • 0.65mm (25.6 mil)Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3328-160-6-08
    • Status - IN STOCK
    • Drawing request
    $116.00

    Part Number Click Enlarge 164 Pin Sockets Price Shopping Cart
    IC51-1644-829 Yamaichi IC51-1644-829 Closed top, 164 Pin QFP Package test socket 164 Pin Closed top Clamshell BQFP (bumper quad flat pack) package test socket
    • Closed top test socket
    • BQFP Package Type
    • 164 Pins
    • 32.02 x 23.51mm Leads Tip to tip
    • 0.635mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1644-829
    • Status - IN STOCK
    • Drawing request
    $165.00

    Part Number Click Enlarge 176 Pin Sockets Price Shopping Cart
    IC51-1764-1505-2   Yamaichi IC51-1764-1505-2 Closed top, 176 Pin QFP Package test socket 176 Pin Yamaichi closed top clamshell QFP package test socket
    • Closed top clamshell test socket
    • QFP Package Type
    • 176 Pins
    • 24.0mm Square Package Chip body width
    • 25.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle RT-IC51-1764-1505-2
    • Circuit board surface mount adapter 176QFS20-QF-ZL-SD
    • Status - IN STOCK
    • Drawing request
    $148.00
    680H1765111   Sensata 680H1765111 open top, 176 Pin QFP Package test socket 176 Pin Open top QFP package test socket
    • Open top test socket
    • QFP Package Type
    • 176 Pins
    • 20.0mm Package Chip body width
    • 22.0mm Leads Tip to tip
    • 0.4mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-680H1765111
    • Status - IN STOCK
    • Drawing request
    $83.00
    3024-176-6-58   Sensata 3024-176-6-58 open top, 176 Pin QFP Package test socket 176 Pin Open top QFP package test socket
    • Open top test socket
    • QFP Square Package Type
    • 176 Pins
    • 24.0mm Package Chip body width
    • 26.0mm Leads Tip to tip
    • 0.5mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle RT-3024-176-6-58
    • Circuit board surface mount adapter 176QFS20-QF-ZO-SD
    • Status - IN STOCK
    • Drawing request
    $106.00

    Part Number Click Enlarge 208 Pin Sockets Price Shopping Cart
    3028-208-6-08 Sensata 3028-208-6-08 open top, 208 Pin QFP Package test socket 208 Pin Open top, TQFP package test socket $120.00
    3228-208-6-08 Sensata 3228-208-6-08 open top, 208 Pin QFP Package test socket 208 Pin Open top, TQFP package test socket
    • Open top test socket
    • TQFP Package Type
    • 208 Pins
    • 28.0mm Package Chip body width
    • 30.6mm Tip to tip
    • 0.50mm Pitch device
    • Mfr. Sensata Technologies (Formerly Wells-CTI)
    • Socket receptacle  RT-7228-208-6-08
    • Circuit board surface mount adapter 208QFS20A-QF-ZO-SD
    • Status - IN STOCK
    • Drawing request
    $120.00
    IC51-2084-1052-1 Yamaichi IC51-2084-1052-1 Closed top, 208 Pin QFP Package test socket 208 Pin Closed top, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 208 Pins
    • 27.5mm x 27.5mm Package Chip body width
    • 31.0mm x 31.0mm Tip to tip
    • 0.50mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-2084-1052-1
    • Status - IN STOCK
    • Drawing request
    $120.00
    IC51-2084-1052-22 Yamaichi IC51-2084-1052-22 Closed top, 208 Pin QFP Package test socket 208 Pin Closed top, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 208 Pins
    • 28.0mm x 28.0mm Package Chip body width
    • 30.0mm x 30.0mm Tip to tip
    • 0.50mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-2084-1052-1
    • Status - IN STOCK
    • Drawing request
    $120.00
    IC51-2084-1566 Yamaichi IC51-2084-1566 Closed top, 208 Pin QFP Package test socket 208 Pin Closed top, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 208 Pins
    • 27.0mm x 27.0mm Package Chip body width
    • 31.0mm x 31.0mm Tip to tip
    • 0.50mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-2084-1052-1
    • Status - IN STOCK
    • Drawing request
    $120.00
    IC51-2084-1052-NL Yamaichi IC51-2084-1052-NL No lid, 208 Pin QFP Package test socket 208 Pin No top socket, TQFP package lidless socket. Commonly used for automatic testing.
    • No Lid test socket
    • TQFP Package Type
    • 208 Pins
    • 28.0mm x 28.0mm Package Chip body width
    • 30.0mm x 30.0mm Tip to tip
    • 0.50mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-2084-1052-1
    • Status - IN STOCK
    • Drawing request
    $90.00

    Part Number Click Enlarge 240 Pin Sockets Price Shopping Cart
    IC51-2404-1420-2   Yamaichi IC51-2404-1420-2 Closed top, 240 Pin QFP Package test socket 240 Pin Closed top test socket, clamshell, TQFP package test socket
    • Closed top test socket
    • TQFP Package Type
    • 240 Pins
    • 31.0mm Package Chip body width
    • 36.0mm Tip to tip
    • 0.50mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-2404-1420-2
    • Status - IN STOCK
    • Drawing request
    $195.00

    Part Number Click Enlarge 256 Pin Sockets Price Shopping Cart
    FPQ-256-0.4-02   Enplas FPQ-256-0.4-02 Closed top, 256 Pin QFP Package test socket 256 Pin Closed top clamshell, TQFP package test socket
    • Closed clamshell top test socket
    • TQFP Package Type
    • 256 Pins
    • 28.0mm Package Chip body width
    • 30.6mm Tip to tip
    • 0.40mm Pitch device
    • Mfr. Enplas
    • Socket receptacle  RT-FPQ-256-0.4-02
    • Status - IN STOCK
    • Drawing request
    $550.00

    Part Number Click Enlarge 304 Pin Sockets Price Shopping Cart
    IC51-3044-1471-3   Yamaichi IC51-3044-1471-3 Closed top, 304 Pin QFP Package test socket 304 Pin Closed top clamshell, TQFP package test socket
    • Closed clamshell top test socket
    • TQFP Package Type
    • 304 Pins
    • 39.2mm Square Package Chip body width
    • 42.6mm Tip to tip
    • 0.5mm Pitch device
    • Mfr. Yamaichi
    • Socket receptacle  RT-IC51-3044-1471-3
    • Status - IN STOCK
    • Drawing request
    $550.00

    Call Aprilog * 800.686.6428  /  650.375.0409 * FAX 650.375.8666

    www.aprilog.com
    1442 Rollins Road, Burlingame CA 94010

    Specs Discounts Delivery
      Test-socket.com is a divion of Enable Engineering Co., Inc.
